1BH9-OG



90°英管外螺纹60°内锥/公制外螺纹O形圈

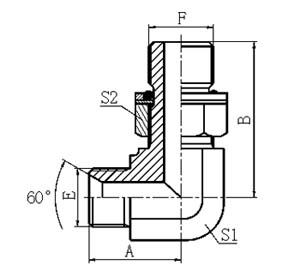

90° BSP MALE 60° SEAT/METRIC MALE O-RING


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1 S2
1BH9-02-10OG G1/8"X28 M10X1 20 26.5 11 14
1BH9-02-12OG G1/8"X28 M12X1.5 20 30.5 11 17
1BH9-04-12OG G1/4"X19 M12X1.5 24.5 32 14 17
1BH9-04-14OG G1/4"X19 M14X1.5 24.5 32.5 14 19
1BH9-04-16OG G1/4"X19 M16X1.5 26.5 34.8 16 22
1BH9-06-14OG G3/8"X19 M14X1.5 27.5 34 16 19
1BH9-06-16OG G3/8"X19 M16X1.5 27.5 34.8 16 22
1BH9-06-18OG G3/8"X19 M18X1.5 28.5 37 19 24
1BH9-08-18OG G1/2"X14 M18X1.5 34.5 39.5 22 24
1BH9-08-20OG G1/2"X14 M20X1.5 34.5 40 22 27
1BH9-08-22OG G1/2"X14 M22X1.5 34.5 40.2 22 27
1BH9-10-20OG G5/8"X14 M20X1.5 35 40 22 27
1BH9-10-22OG G5/8"X14 M22X1.5 35 40.2 22 27
1BH9-12-22OG G3/4"X14 M22X1.5 40 43.5 27 27
1BH9-12-26OG G3/4"X14 M26X1.5 40 47.5 27 32
1BH9-12-27OG G3/4"X14 M27X2 40 48.5 27 32
1BH9-16-27OG G1"X11 M27X2 46 52 33 32
1BH9-16-33OG G1"X11 M33X2 46 52.5 33 41
1BH9-20-42OG G1.1/4"X11 M42X2 50.5 57.2 41 50
1BH9-24-48OG G1.1/2"X11 M48X2 57.5 62.7 48 55
