1BH



英制外螺纹/公制外螺纹O形圈

BSP MALE/METRIC O-RING MALE

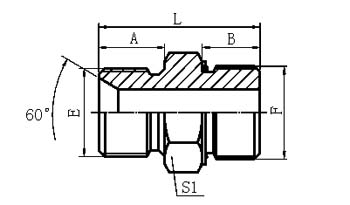

代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1 L
1BH-02-10 G1/8"X28 M10X1 10 8.5 14 24.5
1BH-02-12 G1/8"X28 M12X1.5 10 11 17 27
1BH-04-12 G1/4"X19 M12X1.5 12 11 19 30
1BH-04-14 G1/4"X19 M14X1.5 12 11 19 31.5
1BH-04-16 G1/4"X19 M16X1.5 12 11.5 22 31.5
1BH-06-14 G3/8"X19 M14X1.5 13.5 11 22 32.5
1BH-06-16 G3/8"X19 M16X1.5 13.5 11.5 22 33
1BH-06-18 G3/8"X19 M18X1.5 13.5 12.5 24 34
1BH-08-18 G1/2"X14 M18X1.5 16 12.5 27 38.5
1BH-08-20 G1/2"X14 M20X1.5 16 12.5 27 38.5
1BH-08-22 G1/2"X14 M22X1.5 16 13 27 39
1BH-10-22 G5/8"X14 M22X1.5 17.5 13 30 40.5
1BH-12-16 G3/4"X14 M16X1.5 19.5 11.5 32 43.5
1BH-12-22 G3/4"X14 M22X1.5 18.5 13 32 42.5
1BH-12-27 G3/4"X14 M27X2 18.5 16 32 45.5
1BH-16-27 G1"X11 M27X2 20.5 16 41 49.5
1BH-16-30 G1"X11 M30X2 20.5 16 41 49.5
1BH-16-33 G1"X11 M33X2 20.5 16 41 49.5
1BH-20-42 G1.1/4"X11 M42X2 20.5 16 50 51.5
1BH-24-48 G1.1/2"X11 M48X2 23 17.5 55 55.5
