1BG9-OG

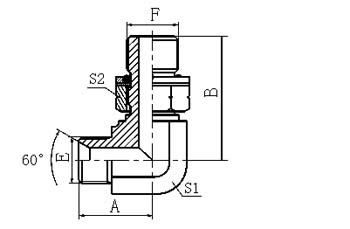

90° 弯英管外螺纹60°内锥 / 英管外螺纹O形圈

90° ELBOW BSP MALE 60° SEAT / BSP MALE O-RING

代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F F端 A B S1 S2
1BG9-04OG G1/4"X19 G1/4"X19 O111 25 31.5 14 19
1BG9-04-06OG G1/4"X19 G3/8"X19 O113 26.5 36.8 16 22
1BG9-06OG G3/8"X19 G3/8"X19 O113 28 36.8 16 22
1BG9-06-08OG G3/8"X19 G1/2"X14 O115 31 43.2 22 27
1BG9-08OG G1/2"X14 G1/2"X14 O115 34.5 43.2 22 27
1BG9-08-12OG G1/2"X14 G3/4"X14 O119 40 49.3 27 32
1BG9-12OG G3/4"X14 G3/4"X14 O119 40 49.3 27 32
1BG9-12-16OG G3/4"X14 G1"X11 O217 45 53 33 41
1BG9-16OG G1"X11 G1"X11 O217 46 53 33 41
1BG9-20-16OG G1.1/4"X11 G1"X11 O217 50.5 58 41 41
1BG9-20OG G1.1/4"X11 G1.1/4"X11 O222 51.5 58 41 50
1BG9-24OG G1.1/2"X11 G1.1/2"X11 O224 58.5 63 48 55

注： F端与DIN 3852油口相配。

Note： F end is connected with DIN 3852 port.
