1BT9-SP



90° 弯 英管外螺纹60°内锥 / 英锥管外螺纹

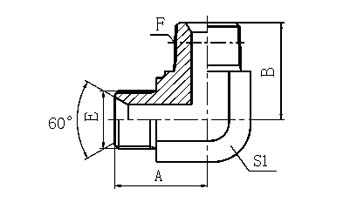

90° ELBOW BSP MALE 60° SEAT / BSPT MALE

代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1
1BT9-02SP G1/8"X28 R1/8"X28 20 21 11
1BT9-02-04SP G1/8"X28 R1/4"X19 22.3 25.5 14
1BT9-04SP G1/4"X19 R1/4"X19 24.5 25.5 14
1BT9-04-02SP G1/4"X19 R1/8"X28 25 23.5 14
1BT9-04-06SP G1/4"X19 R3/8"X19 25 28.5 16
1BT9-04-08SP G1/4"X19 R1/2"X14 30 36 22
1BT9-06SP G3/8"X19 R3/8"X19 27.5 28.5 16
1BT9-06-04SP G3/8"X19 R1/4"X19 27.5 26.5 16
1BT9-06-08SP G3/8"X19 R1/2"X14 31 36 22
1BT9-08SP G1/2"X14 R1/2"X14 34.5 36 22
1BT9-08-04SP G1/2"X14 R1/4"X19 34.5 30.5 22
1BT9-08-06SP G1/2"X14 R3/8"X19 34.5 32.5 22
1BT9-08-12SP G1/2"X14 R3/4"X14 37.5 43.5 27
1BT9-08-16SP G1/2"X14 R1"X11 41 50 33
1BT9-10-08SP G5/8"X14 R1/2"X14 35 36 22
1BT9-10-12SP G5/8"X14 R3/4"X14 39 43.5 27
1BT9-12SP G3/4"X14 R3/4"X14 40 43 27
1BT9-12-06SP G3/4"X14 R3/8"X19 40 36 27
1BT9-12-08SP G3/4"X14 R1/2"X14 40 39.5 27
1BT9-12-16SP G3/4"X14 R1"X11 43.5 50 33
