6B9   6B9-LN

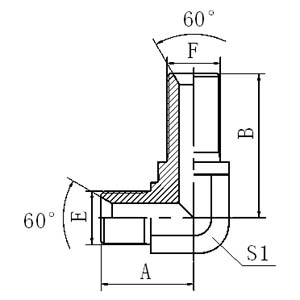

90° 弯英管外螺纹60°内锥过板接头

90° ELBOW BSP MALE 60° SEAT BULKHEAD


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1 S2
6B9-04 G1/4"X19 G1/4"X19 25 51 16 19
6B9-06 G3/8"X19 G3/8"X19 29 53.5 19 22
6B9-08 G1/2"X14 G1/2"X14 34.5 58.5 22 22
6B9-12 G3/4"X14 G3/4"X14 41 64 30 32
6B9-16 G1"X11 G1"X11 47.5 71 33 41

注:如需带锁母整套订货,则请在代号后加“LN”,如6B9-16LN,锁母代号为8B。

Note:In case if you are interested to order the adapter in complete set with lock nut ,it is necessary to insert suffix "LN" after our part no.,for example 6B9-16LN,The lock nut no. is 8B。
