6B   6B-LN

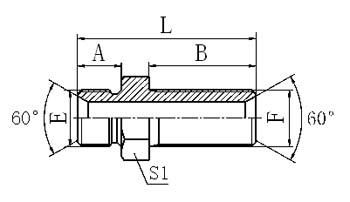

英管外螺纹60°内锥过板接头

BSP MALE 60° SEAT BULKHEAD


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B L S1 S2
6B-02 G1/8"X28 G1/8"X28 10 33 49 14 14
6B-04 G1/4"X19 G1/4"X19 12 35 53 19 19
6B-06 G3/8"X19 G3/8"X19 13.5 35 56.5 22 22
6B-08 G1/2"X14 G1/2"X14 16 39 65 27 27
6B-10 G5/8"X14 G5/8"X14 17.5 40 67.5 30 30
6B-12 G3/4"X14 G3/4"X14 18.5 42 71.5 32 32
6B-16 G1"X11 G1"X11 20.5 50 84 41 41
6B-20 G1.1/4"X11 G1.1/4"X11 20.5 52 89.5 50 50
6B-24 G1.1/2"X11 G1.1/2"X11 23 55 93 55 55
6B-32 G2"X11 G2"X11 25.5 55 97.5 70 70

注：如需带锁母整套订货，则请在代号后加“LN”，如6B-16LN，锁母代号为8B。

Note：In case if you are interested to order the adapter in complete set with lock nut ,it is necessary to insert suffix "LN" after our part no.,for example 6B-16LN,The lock nut no. is 8B。
