| 代 号 |
螺 纹 THREAD |

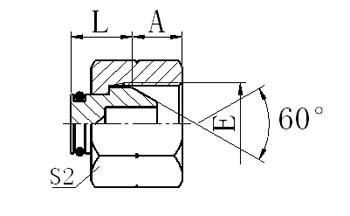

尺 寸 DIMENSIONS |
| PART NO. |
E |
A |
L |
S2 |
| 9B-02 |
G1/8"X28 |
5.5 |
11.5 |
14 |
| 9B-04 |
G1/4"X19 |
5.5 |
13.5 |
19 |
| 9B-06 |
G3/8"X19 |
6.3 |
14.5 |
22 |
| 9B-08 |
G1/2"X14 |
7.5 |
16 |
27 |
| 9B-10 |
G5/8"X14 |
9.5 |
16.5 |
30 |
| 9B-12 |
G3/4"X14 |
10.9 |
17.5 |
32 |
| 9B-16 |
G1"X11 |
11.7 |
19 |
41 |
| 9B-20 |
G1.1/4"X11 |
11 |
21.5 |
50 |
| 9B-24 |
G1.1/2"X11 |
13 |
22 |
55 |
| 9B-32 |
G2"X11 |
16 |
26.5 |
70 |
| |
|
|
|
|
|
