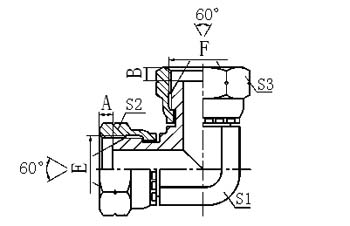

3B9



90° 弯英管内螺纹60°外锥

90° ELBOW BSP FEMALE 60° CONE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1 S2 S3
3B9-02 G1/8"X28 G1/8"X28 5.5 5.5 11 14 14
3B9-04 G1/4"X19 G1/4"X19 5.5 5.5 11 19 19
3B9-06 G3/8"X19 G3/8"X19 6.3 6.3 14 22 22
3B9-08 G1/2"X14 G1/2"X14 7.5 7.5 19 27 27
3B9-10 G5/8"X14 G5/8"X14 9.5 9.5 19 30 30
3B9-12 G3/4"X14 G3/4"X14 10.9 10.9 24 32 32
3B9-16 G1"X11 G1"X11 11.7 11.7 30 41 41
3B9-20 G1.1/4"X11 G1.1/4"X11 11 11 41 50 50
3B9-24 G1.1/2"X11 G1.1/2"X11 13 13 48 55 55
3B9-32 G2"X11 G2"X11 16 16 63 70 70
