CB



英管外螺纹60° 内锥 / 英管内螺纹60° 外锥 三通

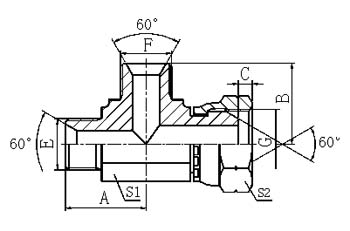

BSP MALE 60° SEAT / BSP FEMALE 60° CONE RUN TEE

代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F G A B C S1 S2
CB-02 G1/8"X28 G1/8"X28 G1/8"X28 19.8 19.8 5.5 11 14
CB-04 G1/4"X19 G1/4"X19 G1/4"X19 25 25 5.5 14 19
CB-06 G3/8"X19 G3/8"X19 G3/8"X19 27.5 27.5 6.3 16 22
CB-08 G1/2"X14 G1/2"X14 G1/2"X14 34.5 34.5 7.5 22 27
CB-10 G5/8"X14 G5/8"X14 G5/8"X14 34.5 34.5 9.5 22 30
CB-12 G3/4"X14 G3/4"X14 G3/4"X14 40 40 10.9 27 32
CB-16 G1"X11 G1"X11 G1"X11 46 46 11.7 33 41
CB-20 G1.1/4"X11 G1.1/4"X11 G1.1/4"X11 50.5 50.5 11 41 50
CB-24 G1.1/2"X11 G1.1/2"X11 G1.1/2"X11 57.5 57.5 13 48 55
CB-32 G2"X11 G2"X11 G2"X11 72.5 72.5 16 63 70
