代     号 PART NO.

螺   纹    THREAD

管子外径  TUBE O.D.

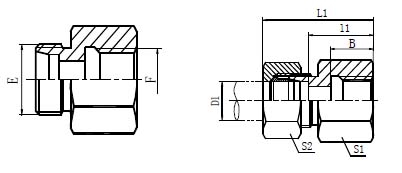

尺    寸  DIMENSIONS

压力等级MPa

E

F

D1

B

l1

L1

S1

S2

31.5 轻系列 L

5CB-12-02

M12X1.5

G1/8"X28

6

12

19

34

14

14

5CB-14-04

M14X1.5

G1/4"X19

8

17

24

39

19

17

5CB-14-06

M14X1.5

G3/8"X19

8

17

25

40

24

17

5CB-14-08

M14X1.5

G1/2"X14

8

20

29

44

27

17

5CB-16-04

M16X1.5

G1/4"X19

10

17

25

40

19

19

5CB-16-06

M16X1.5

G3/8"X19

10

17

26

41

24

19

5CB-16-08

M16X1.5

G1/2"X14

10

20

30

45

27

19

5CB-18-06

M18X1.5

G3/8"X19

12

17

26

41

24

22

5CB-18-08

M18X1.5

G1/2"X14

12

20

30

45

27

22

5CB-22-08

M22X1.5

G1/2"X14

15

20

31

46

27

27

5CB-26-08

M26X1.5

G1/2"X14

18

20

30.5

47

27

32

5CB-30-12

M30X2

G3/4"X14

22

22

35.5

52

36

36

16 轻系列 L

5CB-36-16

M36X2

G1"X11

28

24.5

38

55

41

41

5CB-45-20

M45X2

G1.1/4"X11

35

26.5

41

63

55

50

5CB-52-24

M52X2

G1.1/2"X11

42

28.5

42.5

65

60

60

5DB-14-04

M14X1.5

G1/4"X19

6

17

26

41

19

17

63 重系列 S

5DB-16-04

M16X1.5

G1/4"X19

8

17

26

41

19

19

5DB-18-06

M18X1.5

G3/8"X19

10

17

26.5

43

24

22

5DB-20-06

M20X1.5

G3/8"X19

12

17

27.5

24

24

5DB-22-08

M22X1.5

G1/2"X14

14

20

32

50

30

27

5DB-24-08

M24X1.5

G1/2"X14

16

20

31.5

50

30

30

40 重系列 S

5DB-30-12

M30X2

G3/4"X14

20

22

34.5

56

36

36

5DB-36-16

M36X2

G1"X11

25

24.5

37.5

62

41

46

5DB-42-20

M42X2

G1.1/4"X11

30

26.5

42

69

55

50

5DB-52-24

M52X2

G1.1/2"X11

38

28.5

43.5

74

60

60

31.5重系列S

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如5CB-45-20RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 5CB-45-20RN.
