代         号

PART NO.

螺   纹   THREAD

管子外径

TUBE O.D.

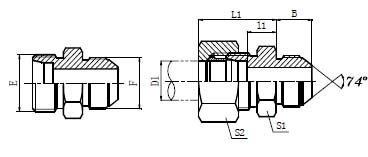

尺   寸   DIMENSIONS

压力等级
MPa

E

F

D1

B

l1

L1

S1

S2

1CJ-14-04

M14x1.5

7/16"X20

8

14

8

23

15

17

31.5
轻系列
L

1CJ-14-06

M14x1.5

9/16"X18

8

14.1

8

23

15

17

1CJ-16-06

M16x1.5

9/16"X18

10

14.1

9

24

17

19

1CJ-18-06

M18x1.5

9/16"X18

12

14.1

10

25

19

22

1CJ-18-08

M18x1.5

3/4"X16

12

16.7

10

25

22

22

1CJ-22-08

M22x1.5

3/4"X16

15

16.7

10.8

26

24

27

1CJ-22-10

M22x1.5

7/8"X14

15

19.3

11

26

24

27

1CJ-26-10

M26X1.5

7/8"X14

18

19.3

11.5

28

27

32

1CJ-26-12

M26X1.5

1.1/16"X12

18

21.9

11.6

28

30

32

1CJ-30-12

M30x2

1.1/16"X12

22

21.9

13.5

30

32

36

16
轻系列
L

1CJ-36-16

M36x2

1.5/16"X12

28

23.1

14.5

31

38

41

1CJ-45-20

M45X2

1.5/8"X12

35

24.3

14.5

36

46

50

1CJ-52-20

M52X2

1.5/8"X12

42

24.3

16

39

55

60

1CJ-52-24

M52X2

1.7/8"X12

42

27.5

16

39

55

60

1DJ-16-04

M16x1.5

7/16"X20

8

14

13

28

17

19

63
重系列
S

1DJ-16-06

M16x1.5

9/16"X18

8

14.1

12.9

28

17

34

1DJ-18-04

M18x1.5

7/16"X20

10

14

12.5

29

19

22

1DJ-18-06

M18x1.5

9/16"X18

10

14.1

12.5

29

19

22

1DJ-20-06

M20x1.5

9/16"X18

12

14.1

14.5

31

22

24

1DJ-20-08

M20x1.5

3/4"X16

12

16.7

14.3

31

22

24

1DJ-22-08

M22x1.5

3/4"X16

14

16.7

16

34

24

27

1DJ-24-08

M24x1.5

3/4"X16

16

16.7

15.5

34

27

30

40
重系列
S

1DJ-30-12

M30x2

1.1/16"X12

20

21.9

17.5

39

32

36

1DJ-36-12

M36x2

1.1/16X12

25

21.9

19

43

38

46

1DJ-36-16

M36x2

1.5/16X12

25

23.1

19

43

38

46

1DJ-42-20

M42x2

1.5/8"X12

30

24.3

20.5

47

46

50

1DJ-52-24

M52X2

1.7/8"X12

38

27.5

23

54

55

60

31.5重系列S

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DJ-20-08RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DJ-20-08RN.
