代     号

PART NO.

螺   纹  THREAD

管子外径  TUBE O.D.

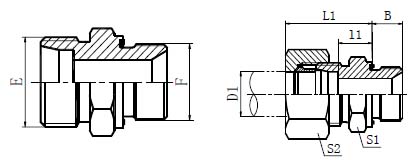

尺   寸    DIMENSIONS

压力等级
MPa

E

F

D1

B

l1

L1

S1

S2

1CM-12-10WD

M12X1.5

M10X1

6

8

8.5

23

14

14

31.5 轻系列 L

1CM-14-12WD

M14X1.5

M12X1.5

8

12

10

25

17

17

1CM-16-12WD

M16X1.5

M12X1.5

10

12

11

25

17

19

1CM-16-14WD

M16X1.5

M14X1.5

10

12

11

26

19

19

1CM-16-18WD

M16X1.5

M18X1.5

10

12

12.5

27

24

19

1CM-18-16WD

M18X1.5

M16X1.5

12

12

12.5

27

22

22

1CM-18WD

M18X1.5

M18X1.5

12

12

12.5

27

24

22

1CM-18-22WD

M18X1.5

M22X1.5

12

14

14

29

27

22

1CM-22-18WD

M22X1.5

M18X1.5

15

12

13.5

29

24

27

1CM-22WD

M22X1.5

M22X1.5

15

14

15

30

27

27

1CM-26-22WD

M26X1.5

M22X1.5

18

14

14.5

31

27

32

1CM-30-26WD

M30X2

M26X1.5

22

16

16.5

33

32

36

16 轻系列 L

1CM-30-27WD

M30X2

M27X1.5

22

16

16.5

33

32

36

1CM-36-33WD

M36X2

M33X2

28

18

17.5

34

41

41

1CM-45-42WD

M45X2

M42X2

35

20

17.5

39

50

50

1CM-52-48WD

M52X2

M48X2

42

22

19

42

55

60

1DM-14-12WD

M14X1.5

M12X1.5

6

12

13

28

17

17

63 重系列 S

1DM-16-14WD

M16X1.5

M14X1.5

8

12

15

30

19

19

1DM-18-16WD

M18X1.5

M16X1.5

10

12

15

31

22

22

1DM-20-18WD

M20X1.5

M18X1.5

12

12

17

33

24

24

1DM-22-20WD

M22X1.5

M20X1.5

14

14

19

37

27

27

1DM-24-22WD

M24X1.5

M22X1.5

16

14

18.5

37

27

30

40 重系列 S

1DM-30-27WD

M30X2

M27X2

20

16

20.5

42

32

36

1DM-36-33WD

M36X2

M33X2

25

18

23

47

41

46

1DM-42WD

M42X2

M42X2

30

20

23.5

50

50

50

1DM-52-48WD

M52X2

M48X2

38

22

26

57

55

60

31.5重系列S

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DM-20-18WD/RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DM-20-18WD/RN.
