1CB9      1CB9/RN

1DB9      1DB9/RN



英管螺纹60°锥密封 90°弯

BSP THREAD 60 ° CONE SEALING 90 ° ELBOW




代     号

PART NO.

螺   纹  THREAD

管子外径

TUBE O.D.

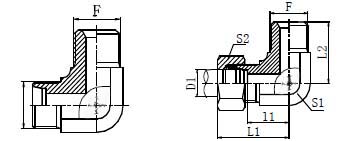

尺    寸  DIMENSIONS

压力等级MPa



E

F

D1

l1

L1

L2

S1

S2

1CB9-12-04 M12X1.5 G1/4"X19 6
15.5
30.5
24.5
14
14
 31.5
轻系列
L
1CB9-14-04 M14X1.5 G1/4"X19 8
15.5
30.5
24.5
14
17
1CB9-14-06 M14X1.5 G3/8"X19 8
16.5
31.5
27.5
16
17
1CB9-16-04 M16X1.5 G1/4"X19 10
17.5
32.5
26.5
16
19
1CB9-16-06 M16X1.5 G3/8"X19 10
17.5
32.5
27.5
16
19
1CB9-16-08 M16X1.5 G1/2"X14 10
21
36
34.5
22
19
1CB9-18-04 M18X1.5 G1/4"X19 12
19
34
27.5
19
22
1CB9-18-06 M18X1.5 G3/8"X19 12
19
36
28.5
19
22
1CB9-18-08 M18X1.5 G1/2"X14 12
21
35.5
34.5
22
22
1CB9-22-06 M22X1.5 G3/8"X19 15
22
37
31
22
27
1CB9-22-08 M22X1.5 G1/2"X14 15
22
37
34.5
22
27
1CB9-26-08 M26X1.5 G1/2"X14 18
25.5
42
37.5
27
32
1CB9-30-12 M30X2 G3/4"X14 22
29.5
46
41
30
36
 16
轻系列
L
1CB9-36-16 M36X2 G1"X11 28
33.3
49.8
47.5
36
41
1CB9-45-20 M45X2 G1.1/4"X11 35
39.2
60.7
54.5
48
50
1CB9-52-24 M52X2 G1.1/2"X11 42
44.8
67.8
63
55
60
1DB9-14-04 M14X1.5 G1/4"X19 6
17.5
32.5
24.5
14
17
 60
重系列
S
1DB9-16-04 M16X1.5 G1/4"X19 8
18.7
33.7
26.5
16
19
1DB9-16-06 M16X1.5 G3/8"X19 8
18.7
33.7
27.5
16
19
1DB9-18-04 M18X1.5 G1/4"X19 10
19.5
36
27.5
19
22
1DB9-18-06 M18X1.5 G3/8"X19 10
19.5
36
28.5
19
22
1DB9-18-08 M18X1.5 G1/2"X14 10
21.5
38
34.5
22
22
1DB9-20-04 M20X1.5 G1/4"X19 12
19.5
36
27.5
19
24
1DB9-20-06 M20X1.5 G3/8"X19 12
19.5
36
28.5
19
24
1DB9-20-08 M20X1.5 G1/2"X14 12
21.5
38
34.5
22
24
1DB9-22-08 M22X1.5 G1/2"X14 14
23
41
34.5
22
27
1DB9-24-06 M24X1.5 G3/8"X19 16
24
42.5
32
24
30
 40
重系列
S
1DB9-24-08 M24X1.5 G1/2"X14 16
24
42.5
35
24
30
1DB9-24-12 M24X1.5 G3/4"X14 16
26
44.5
40
27
30
1DB9-30-12 M30X2 G3/4"X14 20
28.3
49.8
41
30
36
1DB9-36-08 M36X2 G1/2"X14 25
32.8
56.8
42.5
36
46
1DB9-36-12 M36X2 G3/4"X14 25
32.8
56.8
43.5
36
46
1DB9-36-16 M36X2 G1"X11 25
32.8
56.8
47.5
36
46
1DB9-42-20 M42X2 G1.1/4"X11 30
36.2
62.7
50.5
41
50
1DB9-52-24 M52X2 G1.1/2"X11 38
45.8
76.8
63
55
60
31.5重系列S

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DB9-24-12RN。

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DB9-24-12RN.
