ACOC-OG      ACOC-OG/RN

ADOD-OG      ADOD-OG/RN

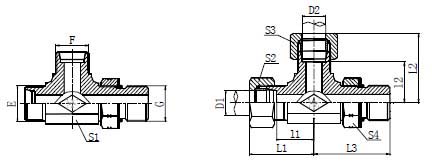

三通右端美制螺纹可调向O形圈密封

BARREL TEE UN、UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING


代     号

PART NO.

螺   纹  THREAD

管子外径

TUBE O.D.

尺    寸  DIMENSIONS

压力等级MPa

E,F

G

D1,D2

l1,l2

L1,L2

L3

S1

S2,S3

S4

ACOC-12-04-12OG

M12X1.5

7/16"X20

6

13

28

27.2

11

14

17



31.5
轻系列
L

ACOC-14-06-14OG

M14X1.5

9/16"X18

8

15.5

30.5

31.8

14

17

19

ACOC-16-06-16OG

M16X1.5

9/16"X18

10

17.5

32.5

33.3

16

19

19

ACOC-18-08-18OG

M18X1.5

3/4"X16

12

19

34

37.5

19

22

24

ACOC-22-10-22OG

M22X1.5

7/8"X14

15

22

37

44

22

27

27

ACOC-26-12-26OG

M26X1.5

1.1/16"X12

18

25.5

42

51

27

32

32

ACOC-30-12-30OG

M30X2

1.1/16"X12

22

29.3

45.8

53.5

30

36

32

16
轻系列
L

ACOC-36-16-36OG

M36X2

1.5/16"X12

28

33.3

49.8

57.5

36

41

41

ACOC-45-20-45OG

M45X2

1.5/8"X12

35

39.2

60.7

63

48

50

50

ADOD-14-04-14OG

M14X1.5

7/16"X20

6

17.5

32.5

30

14

17

17

63
重系列
S

ADOD-16-06-16OG

M16X1.5

9/16"X18

8

18.7

33.7

33.3

16

19

19

ADOD-18-06-18OG

M18X1.5

9/16"X18

10

19.5

36

33.5

19

22

19

ADOD-20-08-20OG

M20X1.5

3/4"X16

12

19.5

36

37.5

19

24

24

ADOD-22-10-22OG

M22X1.5

7/8"X14

14

23

41

44

22

27

27

ADOD-24-10-24OG

M24X1.5

7/8"X14

16

24

42.5

46.5

24

30

27

40
重系列
S

ADOD-30-12-30OG

M30X2

1.1/16"X12

20

28.3

49.8

53.5

30

36

32

ADOD-36-16-36OG

M36X2

1.5/16"X12

25

32.8

56.8

57.5

36

46

41

ADOD-42-20-42OG

M42X2

1.5/8"X12

30

36.2

62.7

59.5

41

50

50

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如ACOC-30-12-30OG/RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example ACCO-30-30-12OG/RN.
