1CO9-OG      1CO9-OG/RN

1DO9-OG      1DO9-OG/RN

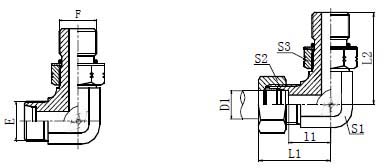

90°弯美制螺纹可调向O形圈密封柱端

90° ELBOW UN、UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING


代     号

PART NO.

螺   纹  THREAD

管子外径

TUBE O.D.

尺    寸  DIMENSIONS

压力等级MPa

E

F

D1

l1

L1

L2

S1

S2

S2

1CO9-12-04OG

M12X1.5

7/16"X20

6

13

28

27.2

11

14

17



31.5
轻系列
L

1CO9-14-06OG

M14X1.5

9/16"X18

8

15.5

30.5

31.8

14

17

19

1CO9-16-06OG

M16X1.5

9/16"X18

10

17.5

32.5

33.3

16

19

19

1CO9-18-08OG

M18X1.5

3/4"X16

12

19

34

37.5

19

22

24

1CO9-22-10OG

M22X1.5

7/8"X14

15

22

37

44

22

27

27

1CO9-22-08OG

M22X1.5

3/4"X16

15

22

37

39.5

22

27

24

1CO9-26-12OG

M26X1.5

1.1/16"X12

18

25.5

42

51

27

32

32

1CO9-30-12OG

M30X2

1.1/16"X12

22

29.3

45.8

53.5

30

36

32

16

轻系列
L

1CO9-36-12OG

M36X2

1.1/16"X12

28

33.5

47.8

57.5

36

41

41

1CO9-36-16OG

M36X2

1.5/16"X12

28

33.3

49.8

57.5

36

41

41

1CO9-45-20OG

M45X2

1.5/8"X12

35

39.2

60.7

63

48

50

50

1CO9-52-24OG

M52X2

1.7/8"X12

42

44.8

67.8

70.5

55

60

55

1DO9-14-04OG

M14X1.5

7/16"X20

6

17.5

32.5

30

14

17

17



63
重系列
S

1DO9-16-06OG

M16X1.5

9/16"X18

8

18.7

33.7

33.3

16

19

19

1DO9-18-06OG

M18X1.5

9/16"X18

10

19.5

36

33.5

19

22

19

1DO9-18-08OG

M18X1.5

3/4"X16

10

19.5

36

37.5

19

22

24

1DO9-20-08OG

M20X1.5

3/4"X16

12

19.5

36

37.5

19

24

24

1DO9-22-10OG

M22X1.5

7/8"X14

14

23

41

44

22

27

27

1DO9-24-10OG

M24X1.5

7/8"X14

16

24

42.5

46.5

24

30

27

40
重系列
S

1DO9-30-12OG

M30X2

1.1/16"X12

20

28.3

49.8

53.5

30

36

32

1DO9-36-16OG

M36X2

1.5/16"X12

25

32.8

56.8

57.5

36

46

41

1DO9-42-20OG

M42X2

1.5/8"X12

30

36.2

62.7

59.5

41

50

50

1DO9-52-24OG

M52X2

1.7/8"X12

38

45.8

76.8

70.5

55

60

55

31.5重系列S

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1CO9-30-12OG/RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1CO9-30-12OG/RN.
