ACGC-OG       ACGC-OG/RN

ADGD-OG       ADGD-OG/RN

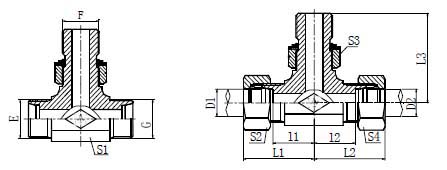

三通中间端英管螺纹可调向O形圈密封

BRANCH TEE BSP THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING




代     号

PART NO.

螺   纹  THREAD

管子外径

TUBE O.D.

尺    寸  DIMENSIONS

压力等级MPa

E ,G

F

D1 ,D2

l1 ,l2

L1,L2

L3

S1

S2,S4

S3

ACGC-12-02-12OG

M12X1.5

G1/8"X28

6

13

28

26.2

11

14

14

31.5
轻系列
L

ACGC-14-04-14OG

M14X1.5

G1/4"X19

8

15.5

30.5

31.3

14

17

19

ACGC-16-04-16OG

M16X1.5

G1/4"X19

10

17.5

32.5

32.5

16

19

19

ACGC-18-06-18OG

M18X1.5

G3/8"X19

12

19

34

36.8

19

22

22

ACGC-22-08-22OG

M22X1.5

G1/2"X14

15

22

37

43.2

22

27

27

ACGC-26-08-26OG

M26X1.5

G1/2"X14

18

25.5

42

46.5

27

32

27

ACGC-30-12-30OG

M30X2

G3/4"X14

22

29.3

45.8

52

30

36

32

16
轻系列
L

ACGC-36-16-36OG

M36X2

G1"X11

28

33.3

49.8

56

36

41

41

ACGC-45-20-45OG

M45X2

G1.1/4"X11

35

39.2

60.7

63

48

50

50

ADGD-14-04-14OG

M14X1.5

G1/4"X19

6

17.5

32.5

31.3

14

17

19

63
重系列
S

ADGD-16-04-16OG

M16X1.5

G1/4"X19

8

18.7

33.7

32.5

16

19

19

ADGD-18-06-18OG

M18X1.5

G3/8"X19

10

19.5

36

36.8

19

22

22

ADGD-20-06-20OG

M20X1.5

G3/8"X19

12

19.5

36

36.8

19

24

22

ADGD-22-08-22OG

M22X1.5

G1/2"X14

14

23

41

43.2

22

27

27

ADGD-24-08-24OG

M24X1.5

G1/2"X14

16

24

42.5

44

24

30

27

40
重系列
S

ADGD-30-12-30OG

M30X2

G3/4"X14

20

28.3

49.8

52

30

36

32

ADGD-36-16-36OG

M36X2

G1"X11

25

32.8

56.8

56

36

46

41

ADGD-42-20-42OG

M42X2

G1.1/4"X11

30

36.2

62.7

58

41

50

50

注：如需带卡套及卡套螺母,订货时请在代号后加“RN”,如ACGC-18-06-18OG/RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example ACGC-18-06-18OG/RN.
