代     号

PART NO.

螺   纹  THREAD

管子外径

TUBE O.D.

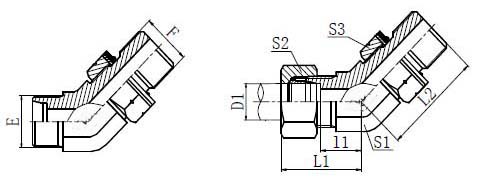

尺    寸  DIMENSIONS

压力等级MPa

E

F

D1

l1

L1

L2

S1

S2

S3

1CG4-12-02OG

M12X1.5

G1/8"X28

6

10

25

24

11

14

14

31.5
轻系列
L

1CG4-14-04OG

M14X1.5

G1/4"X19

8

11

26

27

14

17

19

1CG4-16-04OG

M16X1.5

G1/4"X19

10

12.3

27.3

27

16

19

19

1CG4-16-06OG

M16X1.5

G3/8"X19

10

12.3

27.3

30

16

19

22

1CG4-18-06OG

M18X1.5

G3/8"X19

12

13

28

31

19

22

22

1CG4-22-08OG

M22X1.5

G1/2"X14

15

15

30

36

22

27

27

1CG4-26-08OG

M26X1.5

G1/2"X14

18

16.5

33

37.5

27

32

27

1CG4-26-12OG

M26X1.5

G3/4"X14

18

16.5

33

42

27

32

32

1CG4-30-12OG

M30X2

G3/4"X14

22

19.7

36.2

42.5

30

36

32

16
轻系列
L

1CG4-36-16OG

M36X2

G1"X11

28

21.5

38

44.5

36

41

41

1CG4-45-20OG

M45X2

G1.1/4"X11

35

25.5

47

50.5

48

50

50

1DG4-14-04OG

M14X1.5

G1/4"X19

6

13

28

27

14

17

19

63
重系列
S

1DG4-16-04OG

M16X1.5

G1/4"X19

8

13.3

28.3

27

16

19

19

1DG4-18-06OG

M18X1.5

G3/8"X19

10

13.5

30

31

19

22

22

1DG4-20-06OG

M20X1.5

G3/8"X19

12

13.5

30

31

19

24

22

1DG4-22-08OG

M22X1.5

G1/2"X14

14

16.3

34.3

36

22

27

27

1DG4-24-08OG

M24X1.5

G1/2"X14

16

16.2

34.7

36.5

24

30

27

40
重系列
S

1DG4-30-12OG

M30X2

G3/4"X14

20

18.7

40.2

42.5

30

36

32

1DG4-36-16OG

M36X2

G1"X11

25

21

45

44.5

36

46

41

1DG4-42-20OG

M42X2

G1.1/4"X11

30

24.3

50.8

47.5

41

50

50

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1CG4-30-12OG/RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1CG4-30-12OG/RN.
