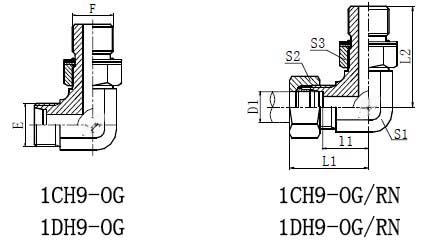

90° ELBOW METRIC THREAD ADJUSTABLE
STUD ENDS ISO 6149
代 号
螺 纹 THREAD
管子外径D1
O 形 圈
尺 寸 DIMENSIONS
压力等级
PART NO.
E
F
TUBE O.D.
O RING
l1
L1
L2
S1
S2
S3
MPa
1CH9-12-10OG
M12X1.5
M10X1
6
O08.1X1.6
13
28
26.5
11
14
14
31.5 轻系列 L
1CH9-14-12OG
M14X1.5
M12X1.5
8
O09.3X2.4
15.5
30.5
32
14
17
17
1CH9-16-14OG
M16X1.5
M14X1.5
10
O11.3X2.4
17.5
32.5
34
16
19
19
1CH9-18-16OG
M18X1.5
M16X1.5
12
O13.3X2.4
19
34
36
19
22
22
1CH9-22-18OG
M22X1.5
M18X1.5
15
O15.3X2.4
22
37
39.5
22
27
24
1CH9-26-22OG
M26X1.5
M22X1.5
18
O19.3X2.4
25.5
42
43.5
27
32
27
1CH9-30-27OG
M30X2
M27X2
22
O23.5X3.0
29.3
45.8
50
30
36
32
16 轻系列L
1CH9-36-33OG
M36X2
M33X2
28
O29.5X3.0
33.3
49.8
54
36
41
41
1DH9-14-12OG
M14X1.5
M12X1.5
6
O09.3X2.4
17.5
32.5
32
14
17
17
63 重系列 S
1DH9-16-14OG
M16X1.5
M14X1.5
8
O11.3X2.4
18.7
33.7
34
16
19
19
1DH9-18-16OG
M18X1.5
M16X1.5
10
O13.3X2.4
19.5
36
36
19
22
22
1DH9-20-18OG
M20X1.5
M18X1.5
12
O15.3X2.4
19.5
36
37
19
24
24
1DH9-22-20OG
M22X1.5
M20X1.5
14
O17.3X2.4
23
41
40
22
27
27
1DH9-24-22OG
M24X1.5
M22X1.5
16
O19.3X2.4
24
42
37.5
24
30
27
1DH9-30-27OG
M30X2
M27X2
20
O23.5X3.0
28.3
49.8
50
30
36
32
40 重系列 S
1DH9-36-33OG
M36X2
M33X2
25
O29.5X3.0
32.8
56.8
54
36
46
41
1DH9-42OG
M42X2
M42X2
30
O38.5X3.0
36.2
62.7
57.2
41
50
50
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DH9-20-18OG/RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO.，for example 1DH9-20-18OG/RN.
