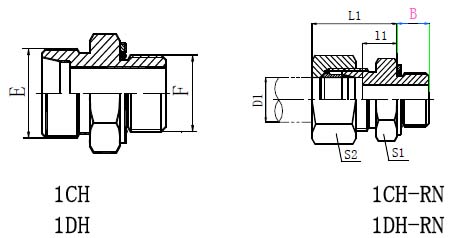

公制螺纹O形圈密封柱端
METRIC THREAD STUD ENDS
WITH O-RING SEALING
代 号
PART NO.
螺 纹 THREAD
管子外径 TUBE O.D.
尺 寸 DIMENSIONS
压力等级MPa
E
F
D1
l1
L1
L2
S1
S2
1CH-12-10
M12X1.5
M10X1
6
8.5
9.5
23
14
14
31.5
轻系列 L
1CH-14
M14X1.5
M14X1.5
8
11
10
25
19
17
1CH-14-12
M14X1.5
M12X1.5
8
11
10
25
17
17
1CH-16-14
M16X1.5
M14X1.5
10
11
13
26
19
19
1CH-18-14
M18X1.5
M14X1.5
12
11
11
25.5
19
22
1CH-14-18
M14X1.5
M18X1.5
8
12.5
11.5
26.5
24
17
1CH-16
M16X1.5
M16X1.5
10
11.5
13
28
22
19
1CH-16-18
M16X1.5
M18X1.5
10
12.5
12.5
28
24
19
1CH-18-16
M18X1.5
M16X1.5
12
11.5
12
27
22
22
1CH-22-16
M22X1.5
M16X1.5
12
11.5
13.5
29.5
24
27
1CH-22-18
M22X1.5
M18X1.5
15
12.5
13.5
29
24
27
1CH-16-22
M16X1.5
M22X1.5
10
13
14
29.5
27
19
1CH-22-20
M22X1.5
M20X1.5
15
12
15
30.5
27
27
1CH-22
M22X1.5
M22X1.5
12
13
15
31
27
27
1CH-26-22
M26X1.5
M22X1.5
18
13
14.5
31
27
32
1CH-26
M26X1.5
M26X1.5
18
13.5
13.5
31
32
32
1CH-26-27
M26X1.5
M27X2
18
16
14.5
32
32
32
1CH-26-33
M26X1.5
M33X2
18
16
15.5
33
41
32
1CH-30-22
M30X2
M22X1.5
22
13
17.5
33
32
41
16 轻系列 L
1CH-30-27
M30X2
M27X2
22
16
16.5
33
32
36
1CH-30
M30X2
M30X2
22
16
17.5
33
36
36
1CH-36-27
M36X2
M27X2
28
16
17.5
34
41
41
1CH-36-33
M36X2
M33X2
28
16
17.5
34
41
41
1CH-36-42
M36X2
M42X2
28
16
18.5 17.5 17.5
35 37 37
50 46 50
41 50 50
1CH-45-33
M45X2
M33X2
35
16
1CH-45-42
M45X2
M42X2
35
16
1CH-52-48
M52X2
M48X2
42
17.5
19
55
60
1DH-14
M14X1.5
M14X1.5
6
11
15
28
19
17
63 重系列 S
1DH-14-12
M14X1.5
M12X1.5
6
11
13
28
17
17
1DH-16-14
M16X1.5
M14X1.5
8
11
15
30
19
19
1DH-18-16
M18X1.5
M16X1.5
10
11.5
15
31
22
22
1DH-20-14
M20X1.5
M14X1.5
12
11
15
31
22
24
1DH-20-16
M20X1.5
M16X1.5
12
11.5
15
31
22
24
1DH-20-18
M20X1.5
M18X1.5
12
12.5
17
33
24
24
1DH-20-22
M20X1.5
M22X1.5
12
13
17.5
35
27
30
1DH-24-22
M24X1.5
M22X1.5
16
13
18.5
37
27
30
40 重系列 S
1DH-30
M30X2
M30X2
20
16
20.5
42
36
36
1DH-30-27
M30X2
M27X2
20
16
20.5
42
32
36
1DH-30-33
M30X2
M33X2
20
16
22.5
42
41
36
1DH-36-27
M36X2
M27X2
25
16
23
47
41
46
1DH-36-33
M36X2
M33X2
25
16
23
47
41
46
1DH-42
M42X2
M42X2
30
16
23.5
50
50
50
1DH-42-16
M42X2
M16X1.5
30
11.5
13.5
49
46
50
1DH-42-48
M42X2
M48X2
30
17.5
26.5
52
55
50
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DH-20-18RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring
and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DH-20-18RN.
