代     号

PART NO.

螺    纹    THREAD

管子外径 TUBE O.D.

尺    寸  DIMENSIONS

压力等级

MPa

E

F

D1

l1

L1

L2

S1

S2

1CT9-12-02SP

M12X1.5

R1/8"X28

6

13

28

21

11

14

25
轻系列
L

1CT9-12-04SP

M12X1.5

R1/4"X19

6

15.5

30.5

25.5

14

14

1CT9-14-02SP

M14X1.5

R1/8"X28

8

15.5

30.5

23.5

14

17

1CT9-14-04SP

M14X1.5

R1/4"X19

8

15.5

30.5

25.5

14

17

1CT9-16-04SP

M16X1.5

R1/4"X19

10

17.5

32.5

26.5

16

19

1CT9-16-06SP

M16X1.5

R3/8"X19

10

17.5

32.5

28.5

16

19

1CT9-16-08SP

M16X1.5

R1/2"X14

10

21

36

36

22

19

1CT9-18-04SP

M18X1.5

R1/4"X19

12

21

34

28

19

22

1CT9-18-06SP

M18X1.5

R3/8"X19

12

19

34

30.5

19

22

1CT9-18-08SP

M18X1.5

R1/2"X14

12

21

36

36

22

22

1CT9-22-06SP

M22X1.5

R3/8"X19

15

22

37

32.5

22

27

1CT9-22-08SP

M22X1.5

R1/2"X14

15

22

37

36

22

27

1CT9-22-12SP

M22X1.5

R3/4"X14

15

25.5

40.5

43.5

27

27

1CT9-26-08SP

M26X1.5

R1/2"X14

18

25.5

42

39.5

27

32

16
轻系列
L

1CT9-26-12SP

M26X1.5

R3/4"X14

18

25.5

42

43.5

27

32

1CT9-30-12SP

M30X2

R3/4"X14

22

29.5

45.8

45.3

30

36

1CT9-30-16SP

M30X2

R1"X11

22

31.5

48

50

33

36

1CT9-36-16SP

M36X2

R1"X11

28

33.3

49.8

52

36

41

1CT9-36-20SP

M36X2

R1.1/4"X11

28

36.2

52.7

57

41

41

1CT9-45-20SP

M45X2

R1.1/4"X11

35

39.2

60.7

61

48

50

1CT9-52-24SP

M52X2

R1.1/2"X11

42

44.8

67.8

68

55

60

1DT9-14-04SP

M14X1.5

R1/4"X19

6

17.5

32.5

25.5

14

17

40
重系列
S

1DT9-16-04SP

M16X1.5

R1/4"X19

8

18.7

33.7

26.5

16

19

1DT9-18-06SP

M18X1.5

R3/8"X19

10

19.5

36

30.5

19

22

1DT9-20-04SP

M20X1.5

R1/4"X19

12

19.5

36

28

19

24

1DT9-20-06SP

M20X1.5

R3/8"X19

12

19.5

36

30.5

19

24

1DT9-22-06SP

M22X1.5

R3/8"X19

14

23

41

32.5

22

27

1DT9-22-08SP

M22X1.5

R1/2"X14

14

23

41

36

22

27

1DT9-24-06SP

M24X1.5

R3/8"X19

16

24

42.5

33.5

24

30

1DT9-24-08SP

M24X1.5

R1/2"X14

16

24

42.5

37.3

24

30

1DT9-30-12SP

M30X2

R3/4"X14

20

28.3

49.8

45.3

30

36

25
重系列
S

1DT9-36-12SP

M36X2

R3/4"X14

25

33.3

57.3

52

36

46

1DT9-36-16SP

M36X2

R1"X11

25

32.8

56.8

52.5

36

46

1DT9-42-16SP

M42X2

R1"X11

30

36.2

62.7

56.5

41

50

1DT9-42-20SP

M42X2

R1.1/4"X11

30

36.2

62.7

57

41

50

1DT9-52-20SP

M52X2

R1.1/4"X11

38

45.8

76.8

67

55

60

1DT9-52-24SP

M52X2

R1.1/2"X11

38

45.8

76.8

68

55

60

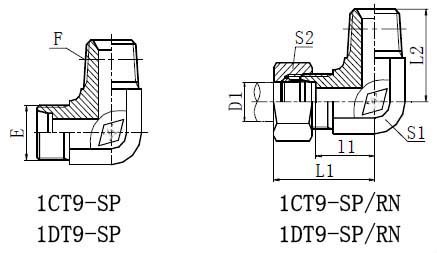

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1CT9-30-12SP/RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring
and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1CT9-30-12SP/RN.
