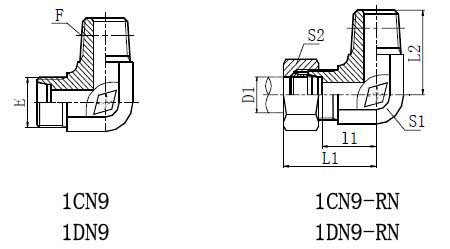

代     号

PART NO.

螺    纹    THREAD

管子外径 TUBE O.D.

尺    寸  DIMENSIONS

压力等级MPa

E

F

D1

l1

L1

L2

S1

S2

1CN9-12-02

M12X1.5

Z1/8"X27

6

13

28

21

11

14

25 轻系列 L

1CN9-12-04

M12X1.5

Z1/4"X18

6

15.5

30.5

25.5

14

14

1CN9-14-04

M14X1.5

Z1/4"X18

8

15.5

30.5

25.5

14

17

1CN9-16-06

M16X1.5

Z3/8"X18

10

17.5

32.5

29.5

16

19

1CN9-18-04

M18X1.5

Z1/4"X18

12

19

34

28

19

22

1CN9-18-06

M18X1.5

Z3/8"X18

12

19

34

31

19

22

1CN9-18-08

M18X1.5

Z1/2"X14

12

21

36

36.7

22

22

1CN9-22-06

M22X1.5

Z3/8"X18

15

22

37

32.5

22

27

1CN9-22-08

M22X1.5

Z1/2"X14

15

22

37

36.7

22

27

1CN9-26-08

M26X1.5

Z1/2"X14

18

25.5

42

40

27

32

16 轻系列 L

1CN9-26-12

M26X1.5

Z3/4"X14

18

25.5

42

44

27

32

1CN9-30-12

M30X2

Z3/4"X14

22

29.3

45.8

45

30

36

1CN9-30-16

M30X2

Z1"X11.5

22

32

50

33

36

1CN9-36-16

M36X2

Z1"X11.5

28

33.3

49.8

51.5

36

41

1CN9-45-20

M45X2

Z1.1/4"X11.5

35

39.2

60.7

63

48

50

1CN9-52-24

M52X2

Z1.1/2"X11.5

42

44.8

67.8

65

55

60

1DN9-14-04

M14X1.5

Z1/4"X18

6

17.5

32.5

25.5

14

17

40 重系列 S

1DN9-16-04

M16X1.5

Z1/4"X18

8

18.5

33.7

26.5

16

19

1DN9-18-06

M18X1.5

Z3/8"X18

10

19.5

36

31

19

22

1DN9-20-04

M20X1.5

Z1/4"X18

12

19.5

36

28

19

24

1DN9-20-06

M20X1.5

Z3/8"X18

12

19.5

36

31

19

24

1DN9-22-06

M22X1.5

Z3/8"X18

14

23

41

32.5

22

27

1DN9-22-08

M22X1.5

Z1/2"X14

14

23

41

36.7

22

27

1DN9-24-06

M24X1.5

Z3/8"X18

16

24

42.5

33.5

24

30

1DN9-24-08

M24X1.5

Z1/2"X14

16

24

42.5

37.5

24

30

1DN9-30-12

M30X2

Z3/4"X14

20

28

49.8

45

30

36

25 重系列 S

1DN9-36-16

M36X2

Z1"X11.5

25

32.8

56.8

51.5

36

46

1DN9-42-16

M42X2

Z1"X11.5

30

36.2

62.7

54.5

41

50

1DN9-42-20

M42X2

Z1.1/4"X11.5

30

36.2

62.7

54.5

41

50

1DN9-52-20

M52X2

Z1.1/4"X11.5

38

45.8

76.8

65

55

60

1DN9-52-24

M52X2

Z1.1/2"X11.5

38

45.8

76.8

65

55

60

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1CN9-30-12RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1CN9-30-12RN.
