代 号

螺 纹 THREAD

尺 寸 DIMENSIONS

PART NO.

E

F

D1

D2

L1

L2

S1

6C9-12

M12X1.5

M12X1.5

6

6

33

34

11

6C9-14

M14X1.5

M14X1.5

8

8

38

34

14

6C9-16

M16X1.5

M16X1.5

10

10

40

35

16

6C9-18

M18X1.5

M18X1.5

12

12

44

36

19

6C9-22

M22X1.5

M22X1.5

15

15

51

38

22

6C9-26

M26X1.5

M26X1.5

18

18

55

40

27

6C9-30

M30X2

M30X2

22

22

65

42

30

6C9-36

M36X2

M36X2

28

28

72

43

36

6C9-45

M45X2

M45X2

35

35

84

47

48

6C9-52

M52X2

M52X2

42

42

94

47

55

6D9-14

M14X1.5

M14X1.5

6

6

40

36.5

14

6D9-16

M16X1.5

M16X1.5

8

8

42

36.5

16

6D9-18

M18X1.5

M18X1.5

10

10

45

37

19

6D9-20

M20X1.5

M20X1.5

12

12

50

38

22

6D9-22

M22X1.5

M22X1.5

14

14

53

38.5

22

6D9-24

M24X1.5

M24X1.5

16

16

57

40

24

6D9-30

M30X2

M30X2

20

20

67

44

30

6D9-36

M36X2

M36X2

25

25

76

47

36

6D9-42

M42X2

M42X2

30

30

87

51

41

6D9-52

M52X2

M52X2

38

38

100

53

55

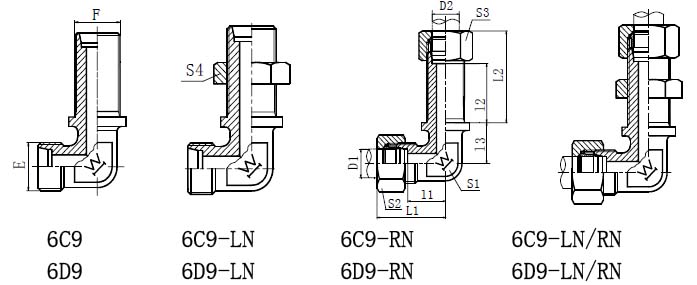

注：如需带锁母订货，则请在代号后加“LN”,如6C9-30LN；如需带卡套及卡套螺母订货，在代号后加“RN”, 如6C9-30RN；如需带锁母、卡套及卡套螺母订货，在代号后加“LN/RN”，如6C9-30LN/RN。

Note：

In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no., for example 6C9-30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part no. ,for example 6C-30RN;

order the adapter with lock nut and cutting ring part no.,for example 6C9-30LN/RN.and nut,insert suffix "LN/RN" after part no.,for example 6C9-30LN/RN.
