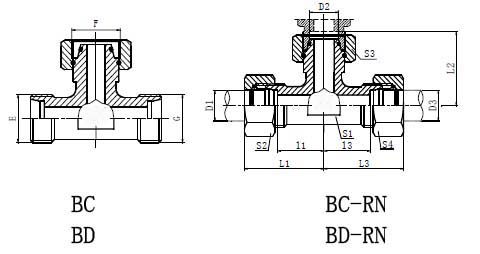

| 代 号 |
螺 纹 THREAD |
管子外径 TUBE O.D. |
尺 寸 DIMENSIONS |
|
压力等级 |
| PART NO. |
E,G |
F |
D1,D3 |
D2 |
l1,l3 |
L1,l3 |
L2 |
S1 |
S2,S4 |
S3 |
|
MPa |
| BC-12 |
M12X1.5 |
M12X1.5 |
6 |
6 |
12 |
27 |
26 |
12 |
14 |
14 |
|
31.5 轻系列 L |
| BC-14 |
M14X1.5 |
M14X1.5 |
8 |
8 |
14 |
29 |
27.5 |
12 |
17 |
17 |
|
| BC-16 |
M16X1.5 |
M16X1.5 |
10 |
10 |
15 |
30 |
29 |
14 |
19 |
19 |
|
| BC-18 |
M18X1.5 |
M18X1.5 |
12 |
12 |
17 |
32 |
29.5 |
17 |
22 |
22 |
|
| BC-22 |
M22X1.5 |
M22X1.5 |
15 |
15 |
21 |
36 |
32.5 |
19 |
27 |
27 |
|
| BC-26 |
M26X1.5 |
M26X1.5 |
18 |
18 |
23.5 |
40 |
35.5 |
24 |
32 |
32 |
|
| BC-30 |
M30X2 |
M30X2 |
22 |
22 |
27.5 |
44 |
38.5 |
27 |
36 |
36 |
|
16 轻系列L |
| BC-36 |
M36X2 |
M36X2 |
28 |
28 |
30.5 |
47 |
41.5 |
36 |
41 |
41 |
|
| BC-45 |
M45X2 |
M45X2 |
35 |
35 |
34.5 |
56 |
51 |
41 |
50 |
50 |
|
| BC-52 |
M52X2 |
M52X2 |
42 |
42 |
40 |
63 |
56 |
50 |
60 |
60 |
|
| BD-14 |
M14X1.5 |
M14X1.5 |
6 |
6 |
16 |
31 |
27 |
12 |
17 |
17 |
|
63 重系列 S |
| BD-16 |
M16X1.5 |
M16X1.5 |
8 |
8 |
17 |
32 |
27.5 |
14 |
19 |
19 |
|
| BD-18 |
M18X1.5 |
M18X1.5 |
10 |
10 |
17.5 |
34 |
30 |
17 |
22 |
22 |
|
| BD-20 |
M20X1.5 |
M20X1.5 |
12 |
12 |
21.5 |
38 |
31 |
17 |
24 |
24 |
|
| BD-22 |
M22X1.5 |
M22X1.5 |
14 |
14 |
22 |
40 |
35 |
19 |
27 |
27 |
|
| BD-24 |
M24X1.5 |
M24X1.5 |
16 |
16 |
24.5 |
43 |
36.5 |
24 |
30 |
30 |
|
40 重系列 S |
| BD-30 |
M30X2 |
M30X2 |
20 |
20 |
26.5 |
48 |
44.5 |
27 |
36 |
36 |
|
| BD-36 |
M36X2 |
M36X2 |
25 |
25 |
30 |
54 |
50 |
36 |
46 |
46 |
|
| BD-42 |
M42X2 |
M42X2 |
30 |
30 |
35.5 |
62 |
55 |
41 |
50 |
50 |
|
| BD-52 |
M52X2 |
M52X2 |
38 |
38 |
41 |
72 |
63 |
50 |
60 |
60 |
|
31.5重系列S |
备注:如需带卡套及卡套螺母整套订货,则请在代号后加"RN",如"BC-30RN"
Note:In case if you are interested to order the adapter in complete set with cutting ring and
nut,it is necessary to insert suffix"RN" arter our part NO.,for example BC-30RN. |
|
|
