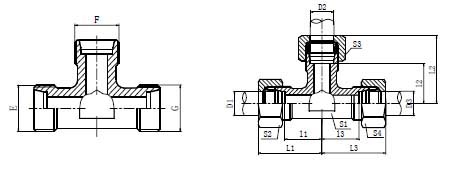

代   号

PART NO.

螺    纹THREAD

管子外径

 TUBE O.D.

尺    寸 DIMENSIONS

压力等级
MPa

E

F

G

D1

D2

D3

l1

l2

l3

L1

L2

L3

S1

S2

S3

S4

AC-12-14-12

M12X1.5

M14X1.5

M12X1.5

6

8

6

14

14

14

29

29

29

14

14

17

14

31.5
轻系列
L

AC-14-12-14

M14X1.5

M12X1.5

M14X1.5

8

6

8

14

14

14

29

29

29

14

17

14

17

AC-12-16-12

M12X1.5

M16X1.5

M12X1.5

6

10

6

15

15

15

30

30

30

14

14

19

14

AC-14-16-14

M14X1.5

M16X1.5

M14X1.5

8

10

8

15

15

15

30

30

30

14

17

19

17

AC-16-12-16

M16X1.5

M12X1.5

M16X1.5

10

6

10

15

15

15

30

30

30

14

19

14

19

AC-16-14-16

M16X1.5

M14X1.5

M16X1.5

10

8

10

15

15

15

30

30

30

14

19

17

19

AC-16-16-12

M16X1.5

M16X1.5

M12X1.5

10

10

6

15

15

15

30

30

30

14

19

19

14

AC-14-18-14

M14X1.5

M18X1.5

M14X1.5

8

12

8

17

17

17

32

32

32

17

17

22

17

AC-18-12-18

M18X1.5

M12X1.5

M18X1.5

12

6

12

17

17

17

32

32

32

17

22

14

22

AC-18-14-14

M18X1.5

M14X1.5

M14X1.5

12

8

8

17

17

17

32

32

32

17

22

17

17

AC-18-14-18

M18X1.5

M14X1.5

M18X1.5

12

8

12

17

17

17

32

32

32

17

22

17

22

AC-18-16-16

M18X1.5

M16X1.5

M16X1.5

12

10

10

17

17

17

32

32

32

17

22

19

19

AC-18-16-18

M18X1.5

M16X1.5

M18X1.5

12

10

12

17

17

17

32

32

32

17

22

19

22

AC-18-18-16

M18X1.5

M18X1.5

M16X1.5

12

12

10

17

17

17

32

32

32

17

22

22

19

AC-16-22-16

M16X1.5

M22X1.5

M16X1.5

10

15

10

21

21

21

36

36

36

19

19

27

19

AC-18-22-18

M18X1.5

M22X1.5

M18X1.5

12

15

12

21

21

21

36

36

36

19

22

27

22

AC-22-12-22

M22X1.5

M12X1.5

M22X1.5

15

6

15

21

21

21

36

36

36

19

27

14

27

AC-22-16-22

M22X1.5

M16X1.5

M22X1.5

15

10

15

21

21

21

36

36

36

19

27

19

27

AC-22-18-18

M22X1.5

M18X1.5

M18X1.5

15

12

12

21

21

21

36

36

36

19

27

22

22

AC-22-18-22

M22X1.5

M18X1.5

M22X1.5

15

12

15

21

21

21

36

36

36

19

27

22

27

AC-22-22-18

M22X1.5

M22X1.5

M18X1.5

15

15

12

21

21

21

36

36

36

19

27

27

22

AC-18-26-18

M18X1.5

M26X1.5

M18X1.5

12

18

12

24

23.5

24

39

40

39

24

22

32

22

AC-26-16-16

M26X1.5

M16X1.5

M16X1.5

18

10

10

23.5

24

24

40

39

39

24

32

19

19

AC-26-16-26

M26X1.5

M16X1.5

M26X1.5

18

10

18

23.5

24

23.5

40

39

40

24

32

19

32

AC-26-18-26

M26X1.5

M18X1.5

M26X1.5

18

12

18

23.5

24

23.5

40

39

40

24

32

22

32

AC-26-22-26

M26X1.5

M22X1.5

M26X1.5

18

15

18

23.5

24

23.5

40

39

40

24

32

27

32

AC-26-26-16

M26X1.5

M26X1.5

M16X1.5

18

18

10

23.5

23.5

24

40

40

39

24

32

32

19

AC-30-16-30

M30X2

M16X1.5

M30X2

22

10

22

27.5

28

27.5

44

43

44

27

36

19

36

16
轻系列
L

AC-30-18-30

M30X2

M18X1.5

M30X2

22

12

22

27.5

28

27.5

44

43

44

27

36

22

36

AC-30-22-22

M30X2

M22X1.5

M22X1.5

22

15

15

27.5

28

28

44

43

43

27

36

27

27

AC-30-22-30

M30X2

M22X1.5

M30X2

22

15

22

27.5

28

27.5

44

43

44

27

36

27

36

AC-30-26-26

M30X2

M26X1.5

M26X1.5

22

18

18

27.5

27.5

27.5

44

44

44

27

36

32

32

AC-30-26-30

M30X2

M26X1.5

M30X2

22

18

22

27.5

27.5

27.5

44

44

44

27

36

32

36

AC-30-30-26

M30X2

M30X2

M26X1.5

22

22

18

27.5

27.5

27.5

44

44

44

27

36

36

32

AC-36-16-36

M36X2

M16X1.5

M36X2

28

10

28

30.5

31

30.5

47

46

47

36

41

19

41

AC-36-18-36

M36X2

M18X1.5

M36X2

28

12

28

30.5

31

30.5

47

46

47

36

41

22

41

AC-36-22-36

M36X2

M22X1.5

M36X2

28

15

28

30.5

31

30.5

47

46

47

36

41

27

41

AC-36-26-36

M36X2

M26X1.5

M36X2

28

18

28

30.5

30.5

30.5

47

47

47

36

41

32

41

AC-36-30-30

M36X2

M30X2

M30X2

28

22

22

30.5

30.5

30.5

47

47

47

36

41

36

36

AC-36-30-36

M36X2

M30X2

M36X2

28

22

28

30.5

30.5

30.5

47

47

47

36

41

36

41

AD-18-14-18

M18X1.5

M14X1.5

M18X1.5

10

6

10

17.5

18

17.5

34

33

34

17

22

17

22

63
重系列
S

AD-20-16-16

M20X1.5

M16X1.5

M16X1.5

12

8

8

21.5

22

22

38

37

37

17

24

19

19

AD-20-16-20

M20X1.5

M16X1.5

M20X1.5

12

8

12

21.5

22

21.5

38

37

38

17

24

19

24

AD-20-18-20

M20X1.5

M18X1.5

M20X1.5

12

10

12

21.5

21.5

21.5

38

38

38

17

24

22

24

AD-20-24-20

M20X1.5

M24X1.5

M20X1.5

12

16

12

25.5

24.5

25.5

42

43

42

24

24

30

24

40
重系列
S

AD-24-14-24

M24X1.5

M14X1.5

M24X1.5

16

6

16

24.5

26

24.5

43

41

43

24

30

17

30

AD-24-16-24

M24X1.5

M16X1.5

M24X1.5

16

8

16

24.5

26

24.5

43

41

43

24

30

19

30

AD-24-18-24

M24X1.5

M18X1.5

M24X1.5

16

10

16

24.5

25.5

24.5

43

42

43

24

30

22

30

AD-24-20-24

M24X1.5

M20X1.5

M24X1.5

16

12

16

24.5

25.5

24.5

43

42

43

24

30

24

30

AD-24-30-24

M24X1.5

M30X2

M24X1.5

16

20

16

28.5

26.5

28.5

47

48

47

27

30

36

30

AD-30-18-30

M30X2

M18X1.5

M30X2

20

10

20

26.5

29.5

26.5

48

46

48

27

36

22

36

AD-30-20-30

M30X2

M20X1.5

M30X2

20

12

20

26.5

29.5

26.5

48

46

48

27

36

24

36

AD-30-24-30

M30X2

M24X1.5

M30X2

20

16

20

26.5

28.5

26.5

48

47

48

27

36

30

36

AD-30-36-30

M30X2

M36X2

M30X2

20

25

20

31.5

30

31.5

53

54

53

36

36

46

36

AD-36-24-36

M36X2

M24X1.5

M36X2

25

16

25

30

33.5

30

54

52

54

36

46

30

46

AD-36-30-36

M36X2

M30X2

M36X2

25

20

25

30

31.5

30

54

53

54

36

46

36

46

AD-36-42-36

M36X2

M42X2

M36X2

25

30

25

37

35.5

37

61

62

61

41

46

50

46

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example AC-30-30-26RN.
