1C 1D  REDUCERS

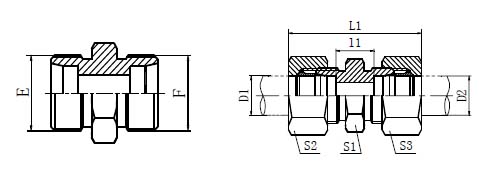

直通变径接头
STRAIGHT REDUCERS




代     号

PART NO.

螺    纹   THREAD

管子外径 TUBE O.D.

尺    寸   DIMENSIONS

压力等级
MPa

E

F

D1

D2

L1

l1

S1

S2

S3



31.5
轻系列

L

1C-12-14

M12X1.5

M14X1.5

6

8

40

11

14

15

17

1C-12-16

M12X1.5

M16X1.5

6

10

41

12

17

15

19

1C-12-18

M12X1.5

M18X1.5

6

12

42

13

19

15

22

1C-14-16

M14X1.5

M16X1.5

8

10

41

13

17

17

19

1C-14-18

M14X1.5

M18X1.5

8

12

42

13

19

17

22

1C-16-18

M16X1.5

M18X1.5

10

12

43

14

19

19

22

1C-16-22

M16X1.5

M22X1.5

10

15

44.5

15

24

19

27

1C-16-26

M16X1.5

M26X1.5

10

18

46

15.5

27

19

32

1C-18-22

M18X1.5

M22X1.5

12

15

44.5

15

24

22

27

1C-18-26

M18X1.5

M26X1.5

12

18

46

15.5

27

22

32

1C-22-26

M22X1.5

M26X1.5

15

18

47.5

16.5

27

27

32

1C-18-30

M18X1.5

M30X2

12

22

48

17.5

32

22

36



16
轻系列
L

1C-22-30

M22X1.5

M30X2

15

22

49.5

18.5

32

27

36

1C-26-30

M26X1.5

M30X2

18

22

50

18

32

32

36

1C-26-36

M26X1.5

M36X2

18

28

51.5

19

41

32

41

1C-30-36

M30X2

M36X2

22

28

53.5

21

41

36

41

1C-30-45

M30X2

M45X2

22

35

58.5

21

46

36

50

1C-36-45

M36X2

M45X2

28

35

59

21

46

41

50

1D-14-16

M14X1.5

M16X1.5

6

8

47

18

17

17

19



63
重系列
S

1D-14-18

M14X1.5

M18X1.5

6

10

48

17.5

19

17

22

1D-16-18

M16X1.5

M18X1.5

8

10

48

17.5

19

19

22

1D-14-20

M14X1.5

M20X1.5

6

12

50

19.5

22

17

24

1D-16-20

M16X1.5

M20X1.5

8

12

50

19.5

22

19

24

1D-18-20

M18X1.5

M20X1.5

10

12

51

19

22

22

24

1D-18-22

M18X1.5

M22X1.5

10

14

54

20.5

24

22

27

1D-20-22

M20X1.5

M22X1.5

12

14

54

20.5

24

24

27

1D-18-30

M18X1.5

M30X2

10

20

59.5

22

32

22

36



40
重系列
S

1D-20-30

M20X1.5

M30X2

12

20

59.5

22

32

24

36

1D-22-24

M22X1.5

M24X1.5

14

16

57

21.5

27

27

27

1D-24-30

M24X1.5

M30X2

16

20

62.5

23

32

30

36

1D-24-36

M24X1.5

M36X2

16

25

67.5

25.5

41

30

46

1D-30-36

M30X2

M36X2

20

25

71

25.5

41

36

46

1D-30-42

M30X2

M42X2

20

30

74

26

46

36

50

1D-36-42

M36X2

M42X2

25

30

77

26.5

46

46

50

1D-42-52

M42X2

M52X2

30

38

86.5

28.5

55

50

60

31.5重系列S

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1C-30-36RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1C-30-36RN.
