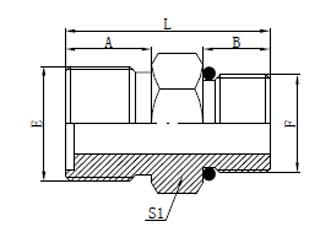

代 号
PART NO. |
螺 纹 THREAD |
|
尺 寸 DIMENSIONS |
| E |
F |
|
|
A |
B |
S1 |
L |
|
| 1EH-12-10 |
M12x1.5 |
M10x1 |
|
|
11 |
11 |
14 |
28 |
|
| 1EH-14-12 |
M14x1.5 |
M12x1.5 |
|
|
11 |
11 |
17 |
28 |
|
| 1EH-16-14 |
M16x1.5 |
M14x1.5 |
|
|
11 |
11 |
19 |
28 |
|
| 1EH-18-16 |
M18x1.5 |
M16x1.5 |
|
|
11 |
11 |
22 |
29 |
|
| 1EH-22-18 |
M22x1.5 |
M18x1.5 |
|
|
12 |
11 |
24 |
31 |
|
| 1EH-27-22 |
M27x1.5 |
M22x1.5 |
|
|
13 |
12 |
30 |
34 |
|
| 1EH-30-27 |
M30x1.5 |
M27x1.5 |
|
|
14 |
13 |
32 |
37 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
