| 代 号 |
螺 纹 E |
胶 管 HOSE BORE |

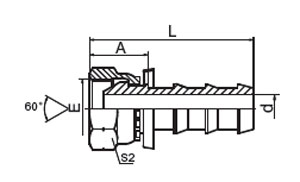

尺 寸 DIMENSIONS |
| PART NO. |
THREAD E |
公称内径 DN |
标号 DASH |
A |
d |
L |
S2 |
|
| 22611-04-04PO(BR) |
G1/4"X19 |
6 |
04 |
19.5 |
4.3 |
37.5 |
19 |
|
| 22611-06-06PO(BR) |
G3/8"X19 |
10 |
06 |
21.5 |
7.6 |
43 |
22 |
|
| 22611-08-08PO(BR) |
G1/2"X14 |
12 |
08 |
24.5 |
9.9 |
50 |
27 |
|
| 22611-12-12PO(BR) |
G3/4"X14 |
20 |
12 |
29 |
15.5 |
67.5 |
32 |
|
| 22611-16-16PO(BR) |
G1"X11 |
25 |
16 |
34.7 |
21 |
81.7 |
41 |
|
| |
|
|
|
|
|
|
|
|
注：材料为铜
Note: Material of brass |
|
|
