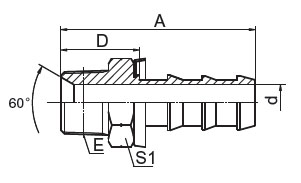

| 代 号 |
螺 纹 E |
胶 管 HOSE BORE |
尺 寸 DIMENSIONS |
| PART NO. |
THREAD E |
公称内径 DN |
标号 DASH |
|
D |
A |
S1 |
|
| 13011-02-04SP(PO)BR |
R1/8"X28 |
6 |
04 |
|
17.7 |
37.5 |
12 |
|
| 13011-04-04SP(PO)BR |
R1/4"X19 |
6 |
04 |
|
20.5 |
42 |
14 |
|
| 13011-04-06SP(PO)BR |
R1/4"X19 |
10 |
06 |
|
22 |
44 |
17 |
|
| 13011-06-06SP(PO)BR |
R3/8"X19 |
10 |
06 |
|
23.5 |
44.5 |
19 |
|
| 13011-08-08SP(PO)BR |
R1/2"X14 |
12 |
08 |
|
30.5 |
56 |
22 |
|
| 13011-12-12SP(PO)BR |
R3/4"X14 |
20 |
12 |
|
29.4 |
70.5 |
30 |
|
| 13011-16-16SP(PO)BR |
R1"X11 |
25 |
16 |
|
38.5 |
88 |
36 |
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
注：材料为铜
Note: Material of brass |
|
|
