| 代 号 |
螺 纹 E |
胶 管 HOSE BORE |

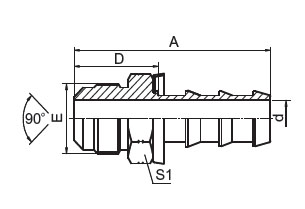

尺 寸 DIMENSIONS |
| PART NO. |
THREAD E |
公称内径 DN |
标号 DASH |
|
A |
D |
S1 |
d |
| 17811-04-04PO |
7/16"X20 |
6 |
04 |
|
39 |
21 |
12 |
4.3 |
| 17811-06-06PO |
5/8"X18 |
10 |
06 |
|
43.5 |
24.5 |
17 |
7.5 |
| 17811-08-08PO |
3/4"X16 |
12 |
08 |
|
55 |
29.5 |
22 |
9.9 |
| 17811-10-10PO |
7/8"X14 |
16 |
10 |
|
71.5 |
32.5 |
24 |
12.2 |
| 17811-12-12PO |
1.1/16"X14 |
20 |
12 |
|
75.4 |
36.8 |
30 |
15.5 |
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
