27811-PO

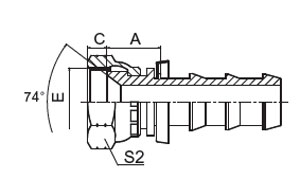

美制SAE内螺纹90°内锥面
SAE FEMALE 90° CONE SEAT

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C   S2
27811-04-04PO 7/16"X20 6 04   12.2 9   15
27811-05-04PO 1/2"X20 6 04   13.7 9.5   17
27811-06-04PO 5/8"X18 6 04   13.7 11.3   22
27811-06-06PO 5/8"X18 10 06   13.7 11.3   22
27811-08-06PO 3/4"X16 10 06   14.7 11   24
27811-08-08PO 3/4"X16 12 08   14.7 11   24
27811-10-08PO 7/8"X14 12 08   15.2 13   27
27811-12-12PO 1.1/16"X14 20 12   16.9 14.3   32
