26791K-PO

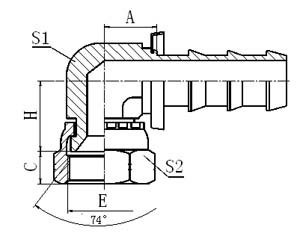

90°美制JIC内螺纹74°内锥面
90° JIC FEMALE 74° CONE SEAT


代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH A C H S1 S2
26791K-04-04PO 7/16"X20 6 04 11.7 9 18 11 17
26791K-06-04PO 9/16"X18 6 04 14.2 10.5 20.5 14 19
26791K-06-06PO 9/16"X18 10 06 15.5 10.5 21 16 19
26791K-08-06PO 3/4"X16 10 06 16 11 22.5 16 24
26791K-08-08PO 3/4"X16 12 08 15.7 11 22.5 19 24
26791K-10-10PO 7/8"X14 16 10 18.5 12 27.5 22 27
26791K-12-12PO 1.1/16"X12 20 12 21.5 15 30 27 32

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为26792-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 26792-xx-xx.
