26711-PO



美制JIC内螺纹74°内锥面

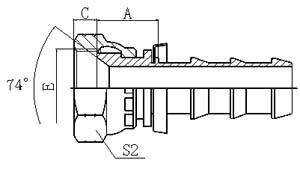

JIC FEMALE 74° CONE SEAT

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C   S2
26711-04-04PO 7/16"X20 6 04   12.2 9   15
26711-05-04PO 1/2"X20 6 04   12.2 9.5   17
26711-06-06PO 9/16"X18 10 06   12.5 10.5   19
26711-08-06PO 3/4"X16 10 06   12.5 11   24
26711-08-08PO 3/4"X16 12 08   14.7 11   24
26711-10-08PO 7/8"X14 12 08   15.2 13   27
26711-10-10PO 7/8"X14 16 10         27
26711-12-12PO 1.1/16"X12 20 12   17.4 15   32
26711-16-16PO 1.5/16"X12 25 16         41

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为26712-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 26712-xx-xx.
