12611-PO

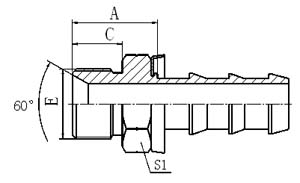

英管外螺纹60°内锥面
BSP MALE 60° CONE SEAT


代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C   S1
12611-04-04PO G1/4"X19 6 04   20     14
12611-06-06PO G3/8"X19 10 06   22     17
12611-08-08PO G1/2"X14 12 08   26.5     22
12611-10-10PO G5/8"X14 16 10   27.5     24
12611-12-12PO G3/4"X14 20 12   29.9     27

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为12612-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 12612-xx-xx.
