15611-PO



布锥管外螺纹

NPT MALE

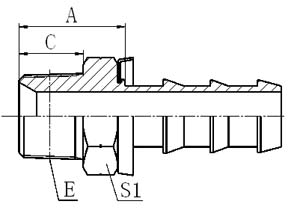

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C   S1
15611-02-04PO Z 1/8"X27 6 04   16.5 10.5   12
15611-04-04PO Z 1/4"X18 6 04   21.1 15   14
15611-04-06PO Z 1/4"X18 10 06   22.6 15   14
15611-06-06PO Z 3/8"X18 10 06   22.6 16   19
15611-06-08PO Z 3/8"X18 12 08   22.6 16   19
15611-08-08PO Z 1/2"X14 12 08   29 19.5   22
15611-08-10PO Z 1/2"X14 16 10   29 19.5   22
15611-12-12PO Z 3/4"X14 20 12   30.7 19.5   27

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为15612-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 15612-xx-xx.
