13011-SP(PO)





英锥管外螺纹
BSPT MALE

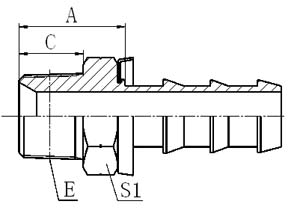

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C S1
13011-02-04SP(PO) R1/8"X28 6 04   17.7 10 12
13011-04-04SP(PO) R1/4"X19 6 04   20.5 14.5 14
13011-04-06SP(PO) R1/4"X19 10 06   22 14.5 17
13011-06-06SP(PO) R3/8"X19 10 06   23.5 15 19
13011-08-08SP(PO) R1/2"X14 12 08   30.5 20 22
13011-12-12SP(PO) R3/4"X14 20 12   29.4 20 30

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为13012-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 13012-xx-xx
