26718D-R5

26718D-R5W

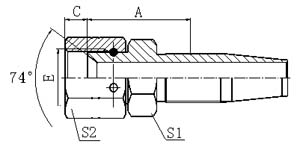

美制JIC内螺纹74°内锥面
JIC FEMALE 74° CONE SEAT


代 号 螺 纹 E 软管 标号 尺 寸 DIMENSIONS
PART NO. THREAD E HOSE DASH   A C S1 S2
26718D-04-04(R5) 7/16"X20 04   22 9 14 17
26718D-05-05(R5) 1/2"X20 05   25.4 9.5 14 17
26718D-06-06(R5) 9/16"X18 06   24.5 10.5 17 19
26718D-08-08(R5) 3/4"X16 08   31.5 11 22 24
26718D-10-10(R5) 7/8"X14 10   34 13 27 27
26718D-12-12(R5) 1.1/16"X12 12   37 15 32 32
26718D-16-16(R5) 1.5/16"X12 16   33.5 16 38 41
26718D-20-20(R5)W 1.5/8"X12 20   41.5 17 41 50
26718D-24-24(R5)W 1.7/8"X12 24   43 20 46 55
26718D-32-32(R5)W 2.1/2"X12 32   45.5 23.5 65 75
