27818-R5

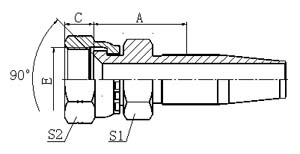

美制SAE内螺纹90°内锥面
SAE FEMALE 90° CONE SEAT

代 号 螺 纹 E 软管 标号 尺 寸 DIMENSIONS
PA/RT NO. TH/READ E HOSE DASH A C S1 S2
27818D-04-04(R5) 7/16"X20 04 22 9 14 17
27818D-05-05(R5) 1/2"X20 05 25.4 9 14 17
27818D-06-06(R5) 5/8"X18 06 26 11.3 17 22
27818D-08-08(R5) 3/4"X16 08 31.5 10.5 22 24
27818D-10-10(R5) 7/8"X14 10 34 12 27 27
27818D-12-12(R5) 1.1/16"X14 12 37 14.3 32 32
