26798D-R5

26798D-R5W

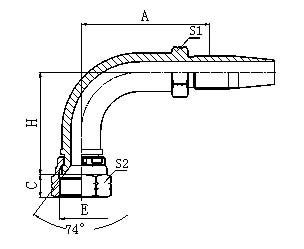

90°美制JIC内螺纹74°内锥面
90° JIC FEMALE 74° CONE SEAT

代 号 螺 纹 E 软管 标号 尺 寸 DIMENSIONS
PA/RT NO. TH/READ E HOSE DASH A C H S1 S2
26798D-04-04(R5) 7/16"X20 04 38.5 9 33.5 14 15
26798D-05-05(R5) 1/2"X20 05 43.4 9.5 37 14 17
26798D-06-06(R5) 9/16"X18 06 44.8 10.5 39.3 17 19
26798D-08-08(R5) 3/4"X16 08 53 11 47.5 19 24
26798D-10-10(R5) 7/8"X14 10 66.5 13 52.5 24 27
26798D-12-12(R5) 1.1/16"X12 12 79.5 15 63.5 27 32
26798D-16-16(R5) 1.5/16"X12 16 86.5 16 70 32 41
26798D-20-20(R5)W 1.5/8"X12 20 100.5 17 85 38 50
26798D-24-24(R5)W 1.7/8"X12 24 121 20 97.5 46 55
26798D-32-32(R5)W 2.1/2"X12 32 143.3 23.5 118.8 60 75
