22618D-R5

22618D-R5W

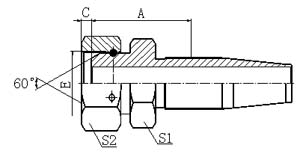

英制内螺纹60°外锥面
BSP FEMALE 60° CONE

代 号 螺 纹 E 软管 标号 尺 寸 DIMENSIONS
PART NO. THREAD E HOSE DASH A C S1 S2
22618D-04-04(R5) G1/4"X19 04 26 5.5 14 19
22618D-06-05(R5) G3/8"X19 05 29.1 6.3 17 22
22618D-06-06(R5) G3/8"X19 06 30 6.3 17 22
22618D-08-08(R5) G1/2"X14 08 35 7.5 19 27
22618D-10-10(R5) G5/8"X14 10 35.5 9.5 22 30
22618D-12-12(R5) G3/4"X14 12 38.5 10.9 27 32
22618D-16-16(R5) G1"X11 16 37 11.7 32 41
22618D-20-20(R5)W G1.1/4"X11 20 41.5 11 41 50
