| 代 号 |
螺 纹 E |
软管 标号 |

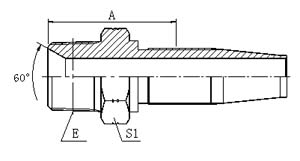

尺 寸 DIMENSIONS |
| PART NO. |
THREAD E |
HOSE DASH |
|
A |
|
S1 |
|
| 15618-02-04(R5) |
Z1/8"X27 |
04 |
|
25.5 |
|
12 |
|
| 15618-04-04(R5) |
Z1/4"X18 |
04 |
|
30 |
|
17 |
|
| 15618-04-06(R5) |
Z1/4"X18 |
06 |
|
31 |
|
17 |
|
| 15618-06-05(R5) |
Z3/8"X18 |
05 |
|
32.9 |
|
19 |
|
| 15618-06-06(R5) |
Z3/8"X18 |
06 |
|
32 |
|
19 |
|
| 15618-08-08(R5) |
Z1/2"X14 |
08 |
|
40.5 |
|
22 |
|
| 15618-12-10(R5) |
Z3/4"X14 |
10 |
|
42.5 |
|
30 |
|
| 15618-12-12(R5) |
Z3/4"X14 |
12 |
|
43 |
|
30 |
|
| 15618-16-16(R5) |
Z1"X11.5 |
16 |
|
46.5 |
|
36 |
|
| 15618-20-20(R5) |
Z1.1/4"X11.5 |
20 |
|
51.5 |
|
46 |
|
| 15618-24-24(R5) |
Z1.1/2"X11.5 |
24 |
|
52.5 |
|
50 |
|
| 15618-32-32(R5) |
Z2"X11.5 |
32 |
|
55 |
|
65 |
|
| |
|
|
|
|
|
|
|
|
|
