| 代 号 |
螺 纹 E |
胶 管 HOSE BORE |

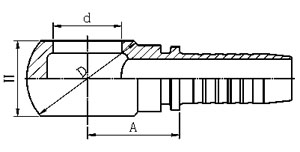

尺 寸 DIMENSIONS |
| PART NO. |
THREAD E |
公称内径 DN |
标号 DASH |
|
A |
d |
D |
H |
| 72011-02-03 |
G1/8"X28 |
5 |
03 |
|
18 |
9.9 |
22 |
16 |
| 72011-02-04 |
G1/8"X28 |
6 |
04 |
|
18.5 |
9.9 |
22 |
16 |
| 72011-04-03 |
G1/4"X19 |
5 |
03 |
|
19 |
13.3 |
24 |
15 |
| 72011-04-04 |
G1/4"X19 |
6 |
04 |
|
19.5 |
13.3 |
24 |
15 |
| 72011-04-05 |
G1/4"X19 |
8 |
05 |
|
19.5 |
13.3 |
24 |
15 |
| 72011-04-06 |
G1/4"X19 |
10 |
06 |
|
19.5 |
13.3 |
24 |
15 |
| 72011-06-04 |
G3/8"X19 |
6 |
04 |
|
22 |
16.7 |
29 |
20 |
| 72011-06-05 |
G3/8"X19 |
8 |
05 |
|
22 |
16.7 |
29 |
20 |
| 72011-06-06 |
G3/8"X19 |
10 |
06 |
|
22 |
16.7 |
29 |
20 |
| 72011-06-08 |
G3/8"X19 |
12 |
08 |
|
23 |
16.7 |
29 |
20 |
| 72011-08-05 |
G1/2"X14 |
8 |
05 |
|
27.5 |
21 |
38 |
25 |
| 72011-08-06 |
G1/2"X14 |
10 |
06 |
|
27.5 |
21 |
38 |
25 |
| 72011-08-08 |
G1/2"X14 |
12 |
08 |
|
28 |
21 |
38 |
25 |
| 72011-08-10 |
G1/2"X14 |
16 |
10 |
|
29 |
21 |
38 |
25 |
| 72011-10-10 |
G5/8"X14 |
16 |
10 |
|
28 |
23 |
40 |
27 |
| 72011-12-10 |
G3/4"X14 |
16 |
10 |
|
32 |
26.5 |
48 |
31 |
| 72011-12-12 |
G3/4"X14 |
20 |
12 |
|
32 |
26.5 |
48 |
31 |
| 72011-16-08 |
G1"X11 |
12 |
08 |
|
40 |
33.3 |
60 |
42 |
| 72011-16-12 |
G1"X11 |
20 |
12 |
|
40 |
33.3 |
60 |
42 |
| 72011-16-16 |
G1"X11 |
25 |
16 |
|
41 |
33.3 |
60 |
42 |
| |
|
|
|
|
|
|
|
|
|
|
