29611   29611-W



日本英制内螺纹60°内锥面
JIS GAS FEMALE 60° CONE SEAT

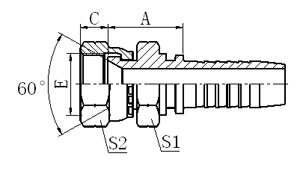

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A   S1 S2
29611-02-03 G1/8"X28 5 03   20   14 14
29611-04-04 G1/4"X19 6 04   21   19 19
29611-04-05 G1/4"X19 8 05   21   19 19
29611-06-04 G3/8"X19 6 04   24   22 22
29611-06-06 G3/8"X19 10 06   23   22 22
29611-08-06 G1/2"X14 10 06   28   27 27
29611-08-08 G1/2"X14 10 12   26.5   27 27
29611-10-10 G5/8"X14 16 10   31   30 30
29611-12-10 G3/4"X14 16 10   28.5   32 32
29611-12-12 G3/4"X14 20 12   28.5   32 32
29611-16-16 G1"X11 25 16   32   41 41
29611-20-20W G1.1/4"X11 32 20   43   50 50
29611-24-24W G1.1/2"X11 40 24   43.5   55 55
29611-32-32W G2"X11 50 32   46.5   70 70

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为29612-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 29612-xx-xx.
