87691

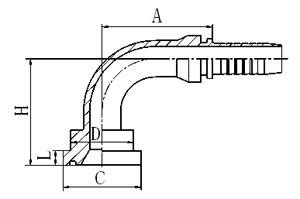

90° SAE 法兰 6000 PSI
90° SAE FLANGE 6000 PSI

代 号 法兰型号 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. FLANGE SIZE 公称内径 DN 标号 DASH   A C D H L
87691-08-08 1/2" 12 08   41 31.7 24 48 7.75
87691-12-10 3/4" 16 10   56.5 41.3 32 56.5 8.76
87691-12-12 3/4" 20 12   66.2 41.3 32 66 8.76
87691-16-12 1" 20 12   66.2 47.6 38 69 9.53
87691-16-16 1" 25 16   78 47.6 38 74.5 9.53
87691-16-20 1" 32 20   91.5 47.6 38 85.5 9.53
87691-20-16 1.1/4" 25 16   78 54 44 78.5 10.29
87691-20-20 1.1/4" 32 20   91.5 54 44 89.5 10.29
87691-24-20 1.1/2" 32 20   91.5 63.5 51 94.5 12.57
87691-24-24 1.1/2" 40 24   109.4 63.5 51 108 12.57
87691-32-24 2" 40 24   109.4 79.4 67 116 12.57
87691-32-32 2" 50 32   131.8 79.4 67 136.3 12.57
