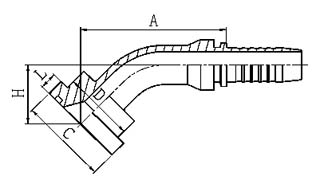

45° SAE 法兰 6000 PSI
45° SAE FLANGE 6000 PSI

代 号 法兰型号 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. FLANGE SIZE 公称内径 DN 标号 DASH   A C D H L
87641-08-08 1/2" 12 08   58.9 31.7 24 24 7.75
87641-08-12 1/2" 20 12   74.9 31.7 24 27.5 7.75
87641-12-10 3/4" 16 10   72.5 41.3 32 28.2 8.76
87641-12-12 3/4" 20 12   79.2 41.3 32 31.8 8.76
87641-16-16 1" 25 16   90.2 47.6 38 34.7 9.53
87641-20-20 1.1/4" 32 20   103.8 54 44 41.5 10.29
87641-24-20 1.1/2" 32 20   105.8 63.5 51 45.1 12.57
87641-24-24 1.1/2" 40 24   116.2 63.5 51 45.5 12.57
87641-32-24 2" 40 24   125.4 79.4 67 54.7 12.57
87641-32-32 2" 50 32   135.7 79.4 67 52.7 12.57
