FL





SAE 对开法兰夹 3000 PSI
SAE SPLIT FLANGE CLAMPS 3000 PSI
ISO 6162——SAE J518

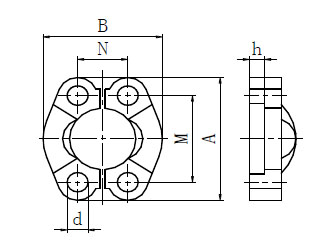

代 号 法兰型号 尺 寸 DIMENSIONS 螺栓 O形圈 压力等级
PART NO. FLANGE SIZE A B C D E BOLT O-RING MPa
FL-08 1/2" 53.8 46.1 38.1 9 17.5 M8X25 O210 34.5
FL-12 3/4" 65 52.4 47.6 11 22.2 M10X30 O214
FL-16 1" 69.9 58.7 52.4 11 26.2 M10X30 O219
FL-20 1.1/4" 79.2 73 58.7 11 30.2 M10X30 O222 27.6
FL-24 1.1/2" 93.7 82.6 69.9 13.5 35.7 M12X35 O225 20.7
FL-32 2" 101.6 96.8 77.8 13.5 42.9 M12X35 O228
FL-40 2.1/2" 114 109 88.9 13.5 50.8 M12X40 O232 10
