90° SAE 法兰 3000 PSI
90° SAE FLANGE 3000 PSI

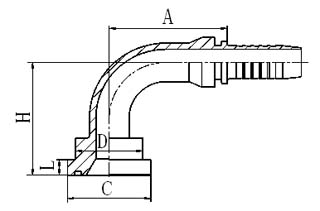

代 号 法兰型号 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. FLANGE SIZE 公称内径 DN 标号 DASH   A C D H L
87391-08-08 1/2" 12 08   41 30.2 24 47 6.73
87391-12-08 3/4" 12 08   41 38.1 31.7 48 6.73
87391-12-10 3/4" 16 10   56.5 38.1 31.7 52.5 6.73
87391-12-12 3/4" 20 12   66.2 38.1 31.7 62 6.73
87391-12-12(H100) 3/4" 20 12   65.5 38.1 31.7 100 6.73
87391-12-12(H127) 3/4" 20 12   65.5 38.1 31.7 127 6.73
87391-12-12(H150) 3/4" 20 12   65.5 38.1 31.7 150 6.73
87391-12-16 3/4" 25 16   76.7 38.1 31.7 67.5 6.73
87391-16-12 1" 20 12   66.2 44.4 38 62 8
87391-16-16 1" 25 16   78 44.4 38 67.5 8
87391-16-16(H100) 1" 25 16   76.7 44.4 38 100 8
87391-16-16(H127) 1" 25 16   76.7 44.4 38 127 8
87391-16-16(H150) 1" 25 16   76.7 44.4 38 150 8
87391-16-20 1" 32 20   91.5 44.4 38 78.5 8
87391-20-16 1.1/4" 25 16   78 50.8 43 67.5 8
87391-20-20 1.1/4" 32 20   91.5 50.8 43 78.5 8
87391-20-20(H100) 1.1/4" 32 20   91.5 50.8 43 100 8
87391-20-20(H127) 1.1/4" 32 20   91.5 50.8 43 127 8
87391-20-20(H150) 1.1/4" 32 20   91.5 50.8 43 150 8
87391-20-24 1.1/4" 40 24   108.5 50.8 43 78.5 8

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为87392-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 87392-xx-xx.
