87311





SAE 法兰 3000 PSI
SAE FLANGE 3000 PSI

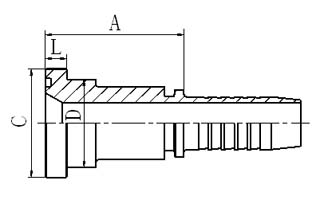

代 号 法兰型号 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. FLANGE SIZE 公称内径 DN 标号 DASH   A C D L
87311-08-08 1/2" 12 08   46 30.2 24 6.73
87311-12-08 3/4" 12 08   47 38.1 31.7 6.73
87311-12-10 3/4" 16 10   48 38.1 31.7 6.73
87311-12-12 3/4" 20 12   48 38.1 31.7 6.73
87311-12-16 3/4" 25 16   49 38.1 31.7 6.73
87311-16-12 1" 20 12   51 44.4 38 8
87311-16-16 1" 25 16   52 44.4 38 8
87311-16-20 1" 32 20   53 44.4 38 8
87311-20-16 1.1/4" 25 16   57 50.8 43 8
87311-20-20 1.1/4" 32 20   58 50.8 43 8
87311-24-20 1.1/2" 32 20   68 60.3 50 8
87311-24-24 1.1/2" 40 24   68 60.3 50 8
87311-32-24 2" 40 24   70 71.4 62 9.53
87311-32-32 2" 50 32   70 71.4 62 9.53
87311-40-40 2.1/2" 64 40   76 84.1 74 9.53

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为87312-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 87312-xx-xx.
