14211





美制ORFS外螺纹平面O形圈密封

ORFS MALE O-RING SEAL ISO 8434-3----SAE J1453

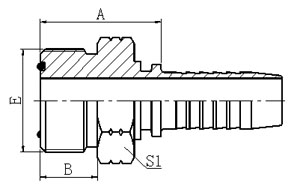

代 号 螺 纹 E 胶 管 HOSE BORE O形圈 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH O-RING A B S1
14211-04-04 9/16"X18 6 04 O011 22.3 9.8 17
14211-06-04 11/16"X16 6 04 O012 24 11.2 19
14211-06-06 11/16"X16 10 06 O012 24 11.2 19
14211-08-06 13/16"X16 10 06 O014 27.5 12.8 22
14211-08-08 13/16"X16 12 08 O014 28.5 12.8 22
14211-08-10 13/16"X16 16 10 O014 28.5 12.8 22
14211-10-08 1"X14 12 08 O016 32.5 15.5 27
14211-10-10 1"X14 16 10 O016 34 15.5 27
14211-12-08 1.3/16"X12 12 08 O018 35.5 17 32
14211-12-10 1.3/16"X12 16 10 O018 36.5 17 32
14211-12-12 1.3/16"X12 20 12 O018 36.5 17 32
14211-16-12 1.7/16"X12 20 12 O021 37 17.5 38
14211-16-16 1.7/16"X12 25 16 O021 38.5 17.5 38
14211-20-20 1.11/16"X12 32 20 O025 41.5 17.5 46
14211-24-24 2"X12 40 24 O029 43.5 17.5 55
