26791K



90°美制短身JIC内螺纹74°内锥面

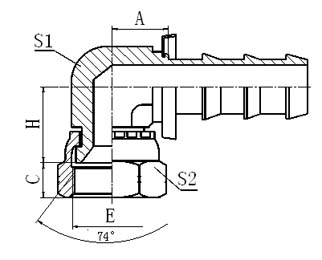

90° JIC COMPACT FEMALE 74° CONE SEAT

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH A C H S1 S2
26791K-04-04 7/16"X20 6 04 17.5 9 18 11 15
26791K-06-04 9/16"X18 6 04 19 10.5 21 14 19
26791K-06-06 9/16"X18 10 06 20 10.5 21 16 19
26791K-08-06 3/4"X16 10 06 23 11 25 19 24
26791K-08-08 3/4"X16 12 08 23.5 11 25 22 24
26791K-10-08 7/8"X14 12 08 23.5 13 27.5 22 27
26791K-10-10 7/8"X14 16 10 25 13 27.5 22 27
26791K-12-12 1.1/16"X12 20 12 27.5 15 30 27 32
26791K-16-16 1.5/16"X12 25 16 43 16 34.3 33 41

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为26792-xx-xx。

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 26792-xx-xx.
