26711   26711-T

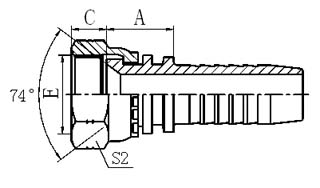

美制JIC内螺纹74°内锥面
JIC FEMALE 74° CONE SEAT

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C S2
26711-04-03 7/16"X20 5 03   14.5 9 15
26711-04-04 7/16"X20 6 04   15 9 15
26711-05-04 1/2"X20 6 04   15.5 9.5 17
26711-05-05 1/2"X20 8 05   15.5 9.5 17
26711-05-06 1/2"X20 10 06   15.5 9.5 17
26711-06-04 9/16"X18 6 04   15.5 10.5 19
26711-06-05 9/16"X18 8 05   15.5 10.5 19
26711-06-06 9/16"X18 10 06   15.5 10.5 19
26711-06-08 9/16"X18 12 08   16 10.5 19
26711-08-06 3/4"X16 10 06   17.5 11 24
26711-08-08 3/4"X16 12 08   18 11 24
26711-08-10 3/4"X16 16 10   19.5 11 24
26711-10-08 7/8"X14 12 08   18.5 13 27
26711-10-10 7/8"X14 16 10   20 13 27
26711-10-12 7/8"X14 20 12   20 13 27
26711-12-08T 1.1/16"X12 12 08   19 15 32
26711-12-10 1.1/16"X12 16 10   21.5 15 32
26711-12-12 1.1/16"X12 20 12   21.5 15 32
26711-12-16 1.1/16"X12 25 16   23 15 32
26711-14-12 1.3/16"X12 20 12   21.5 15 36
